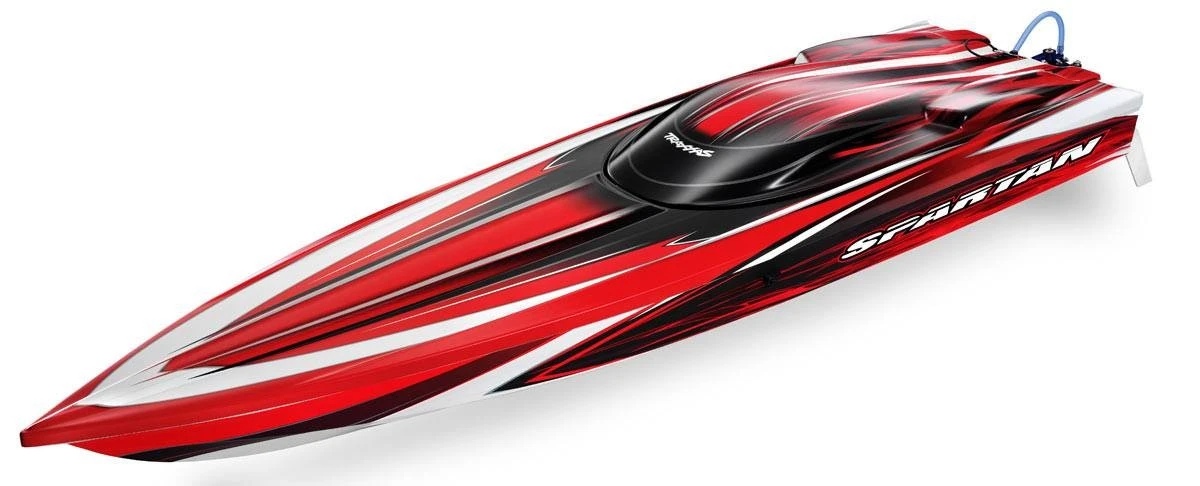

Traxxas Spartan High Performance Brushless 1/10 Race Boat RTR, Red

It’s the kind of boat you would expect from Traxxas: Extreme Velineon® brushless power, ballistic speed, and a huge waterfall of roost that rains down long after the boat speeds by. The howling fury of 50+ mph across the water on optional 6S LiPo power will make even the most insatiable, power-hungry enthusiasts jump up and take notice. Simply put, Spartan is your boat! Everything about it means business: the super-rigid, 36-inch deep-V hull; smooth, cable-drive efficiency; innovative water cooling system; and precision aluminum and stainless steel drive controls. The clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. The integrated battery trays securely hold a variety of battery configurations—from the included 7-cell Power Cell NiMH packs to 3S LiPos. Ride trim is easily adjusted by positioning the packs fore and aft using the convenient hook and loop straps that secure the batteries. The optimized rudder configuration carves amazing full-throttle turns. A high-output 2.4GHz radio system, along with water-cooled and waterproof electronics, keep Spartan going for the trouble-free, all-day running you count on from Traxxas. No detail was overlooked on our mission to engineer a boat that offers the power, speed, convenience, and fun that Traxxas’ award-winning cars and trucks are known for. Prepare yourself for the ultimate R/C boating power trip, only from Traxxas.

• 30+mph out of the box, 50+mph on 6S LiPo!
• 36″ deep-V hull for stable high-speed performance
• Water-cooled, waterproof VXL-6s Marine speed control
• 6S LiPo compatible with built-in Low-Voltage Detection
• Traxxas High-Current Connectors (patented)
• Velineon 540 XL high-output brushless motor with highflow water-cooling jacket
• Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
• Adjustable battery trays with hook-and-loop straps
• Blue-anodized aluminum rudder support, rudder, and drive strut
• Stainless steel turn fins, trim tabs, and hardware
• NEW TQi 2.4GHz transmitter
• Compatible with optional Traxxas Link Wireless Module ( tra6511 ) for full Traxxas Link App capability with Apple iPad, iPhone or iPod touch (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver ( tra6518 ) with fail-safe security and integrated telemetry ports
• 4-amp peak detecting DC fast charger
• Includes two 7-cell iDTM Power Cell battery packs
• Waterproof high-torque steering servo
• Sleek design with factory-applied graphics
• Ready-To-Race®
• Traxxas factory support

Hull Type: Deep-V

Dead Rise Angle: 26 Degrees

Hull Length: 36.5 Inches (927mm)

Overall Length: 40.8 (1037mm)

Overall Height: 5.8 (147mm)

Beam (width): 9.5 Inches (243mm)

Weight: 72oz (2041g)

Speed Control Type: Traxxas Velineon® VXL-6s, Water-cooled

Input Voltage: 7-18 NiMH Cells, 2-6 LiPo Cells (8.4-22.2 Volts DC)

BEC Voltage: 6.0 VDC

BEC Current: 3A

Thermal Protection: Thermal shutdown

Low Voltage Detection: Yes (user enabled)

Motor (electric): Traxxas Velineon® 540XL Brushless, water-cooled

Drive System: Direct Drive, 0.150″ Flex Cable

Outdrive: Adjustable Aluminum

Prop: 2-blade composite, 42x59mm

Transmitter: TQi 2.4GHz (2-channel)

Receiver: 6518 2.4GHz Micro 5-channel

Servo: 2056 High-torque waterproof

Batteries: (2) 7-cell iDTM Power Cell Batteries with High Current Connector*

Charger: 4-amp Peak Detecting DC Fast Charger

Skill Level: 2

Modern Reinforced Hull:
The foundation of Spartan’s extreme performance is its all-new hull. The clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. Lightweight yet incredibly strong, Spartan’s ABS hull is designed to withstand the stress of high-voltage brushless horsepower, without the weight penalty of a fiberglass hull. The transom bulkhead also incorporates bosses for the trim tabs, turn fins, rudder support, and drive strut, eliminating the need for plywood doublers and additional hardware inside the hull. In the Spartan’s bow, molded foam is form-fitted to the interior, adding security as it further stiffens the hull. Outside the hull, Spartan impresses with its durable, vivid, factory-applied graphics—a Traxxas trademark.

Easy-Access Hatch:
Spartan’s hatch is secured by a single body clip and removes in seconds for fast and easy access to the hull interior. No sealing tape is required, and a specially designed drip rail in the hull channels away any water that washes over the hatch.

Body-Clip Lanyard:
You’ll never drop a body clip into the pond with Spartan! A flexible rubber lanyard keeps the body clip secured to the hatch so it’s always at the ready. It’s just one of the many small details that makes a day at the pond with Spartan fun and easy.

Streamlined Water Outlet:
Nothing was overlooked in the effort to optimize every detail of the Spartan—even the water outlet is unique! Instead of an unsightly piece of tubing, Spartan’s water outlet is streamlined and integrated into the hull, maintaining its sleek look.

Factory-Applied Graphics:
Spartan’s bold graphics make it the most stunning boat on the pond, with a custom look even pro painters can’t match. No painting or decaling is required; all the graphics are pre-applied to get Spartan out of the box and into the water with speed and style.

High-Performance Prop:
Spartan’s surface-piercing prop is optimized to get the hull on plane quickly without cavitation and to run at maximum speed with the least current draw. Traxxas engineers spent many hours testing prop configurations to find the perfect balance of performance, efficiency, and durability. Molded composite construction makes the prop light and tough, and no balancing or sharpening is required.

High-Strength Aluminum Hardware:
Extreme brushless horsepower demands rigid drive hardware and a flex-free transom for sharp and predictable handling. The rudder, rudder support and drive strut are extruded and machined from rugged 6000-series aluminum alloy for maximum strength, and then polished and anodized vivid blue for that unmistakable Traxxas look. When you lean the Spartan over into a water-carving turn, you can count on the rudder to dig in and hold your line. The rudder incorporates a pickup for the water-cooling system, and uses oilite bushings for smooth steering action. The drive strut also uses oilite bushings for corrosion-free performance, and features an oiling hole for easy maintenance.

Velineon VXL-6s Marine Brushless System:
Extreme Velineon brushless horsepower delivers the muscle you want with the reliability you expect from Traxxas. 30+mph out of the box on the included 7-cell battery packs is just the start. The VXL-6s Marine electronic speed control is built for true 6S LiPo power.* On-board low voltage detection helps you maintain your batteries. The extra voltage and current maximizes the potential of the Velineon 540XL motor for extreme 50+mph speed. The rebuildable, sensorless Velineon 540XL motor is designed for high-rpm performance and reliability with ultra high-temperature sintered Neodymium magnets, a precision-balanced rotor, and efficient, high-speed ball bearings. Cooling water is routed through the innovative speed control case and then into a unique sealed motor jacket that allows cooling water to flow directly against the motor for maximum possible heat transfer. The Spartan keeps its cool, run after run, for trouble-free all-day fun.

Waterproof Electronics:
Waterproof electronics are a must in the marine environment. Traxxas electronics are fully waterproof (not just water resistant). The speed control, servo, and receiver all feature rugged waterproofing protection for dependable operation you can count on. It’s an innovation you’ll find only in Traxxas vehicles.

High-Torque Waterproof Servo:
Spartan demands a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. O-ring seals make the servo completely waterproof, and there’s steering muscle to spare with 80 oz-in of torque at your command. That’s twice the power of typical “standard” servos.

Sealed Watertight Receiver Box:
Traxxas’ innovative, ground-breaking waterproof receiver box routes the antenna and servo wires neatly through a special watertight seal (patent pending). To protect the receiver, a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.
