Traxxas Spartan Brushless 36 RTR With TQi 2.4GHz TRA57076-4

This is the Traxxas brushless Spartan 36 RTR with TQi 2.4GHz radio system. It’s the kind of boat you would expect from Traxxas: Extreme Velineon brushless power, ballistic speed, and a huge waterfall of roost that rains down long after the boat speeds by. The howling fury of 50+ mph across the water on optional 6S LiPo power will make even the most insatiable, power-hungry enthusiasts jump up and take notice. Simply put, Spartan is your boat!

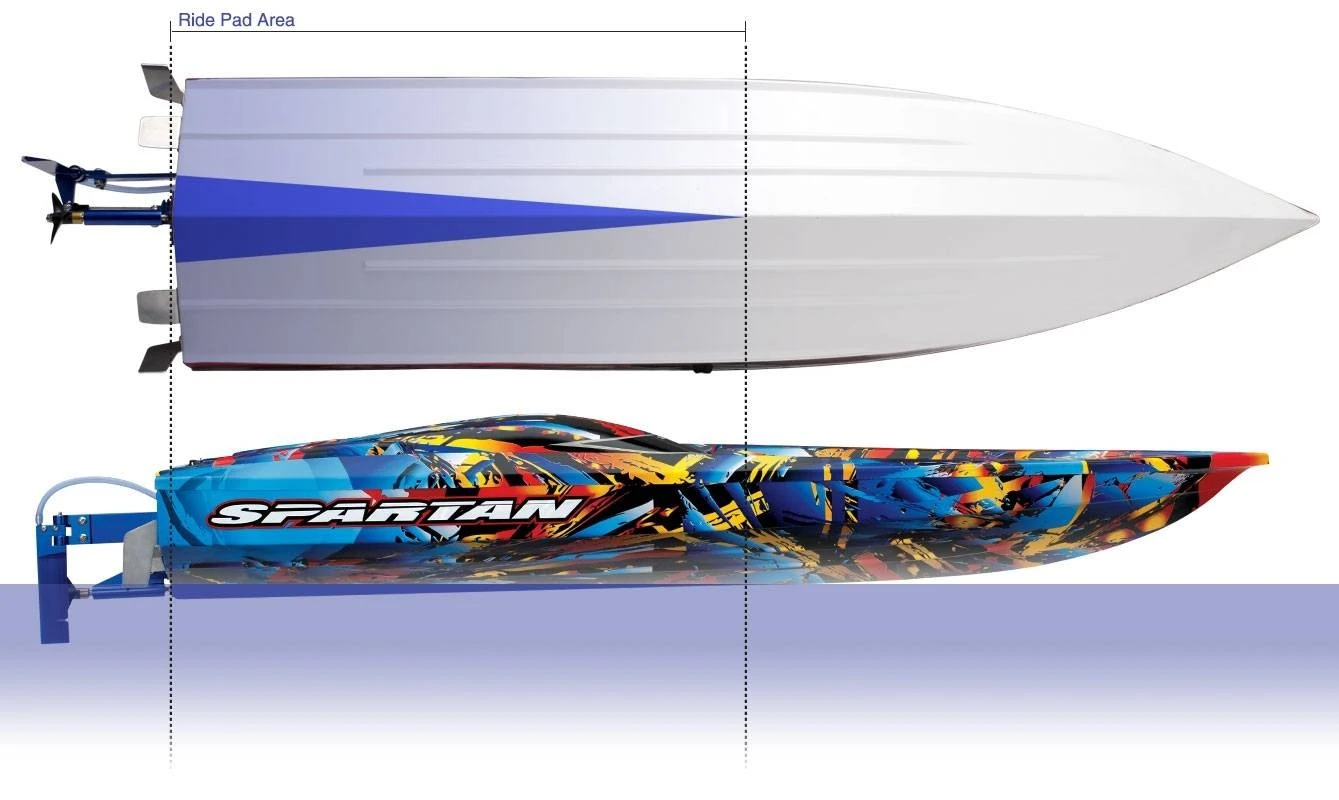

Everything about it means business: the super-rigid, 36-inch deep-V hull; smooth, cable-drive efficiency; innovative water cooling system; and precision aluminum and stainless steel drive controls. The clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. The integrated battery trays securely hold a variety of battery configurations—from the 6-cell Power Cell NiMH packs to 3S LiPos. Ride trim is easily adjusted by positioning the packs fore and aft using the convenient hook and loop straps that secure the batteries. The optimized rudder configuration carves amazing full-throttle turns. A high-output TQi 2.4GHz radio system, along with water-cooled and waterproof electronics, keep Spartan going for the trouble-free, all-day running you count on from Traxxas. No detail was overlooked on Traxxas’s mission to engineer a boat that offers the power, speed, convenience, and fun that Traxxas’ award-winning cars and trucks are known for. Prepare yourself for the ultimate R/C boating power trip, only from Traxxas.

• 30+mph out of the box with 2-7cell MiMH packs, 50+mph on 6S LiPo! (batteries sold separately)
• 36″ deep-V hull for stable high-speed performance
• Water-cooled, waterproof VXL-6s Marine speed control
• 6S LiPo compatible with built-in Low-Voltage Detection
• Traxxas High-Current Connectors (patented)
• Velineon 540 XL high-output brushless motor with highflow water-cooling jacket
• Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube

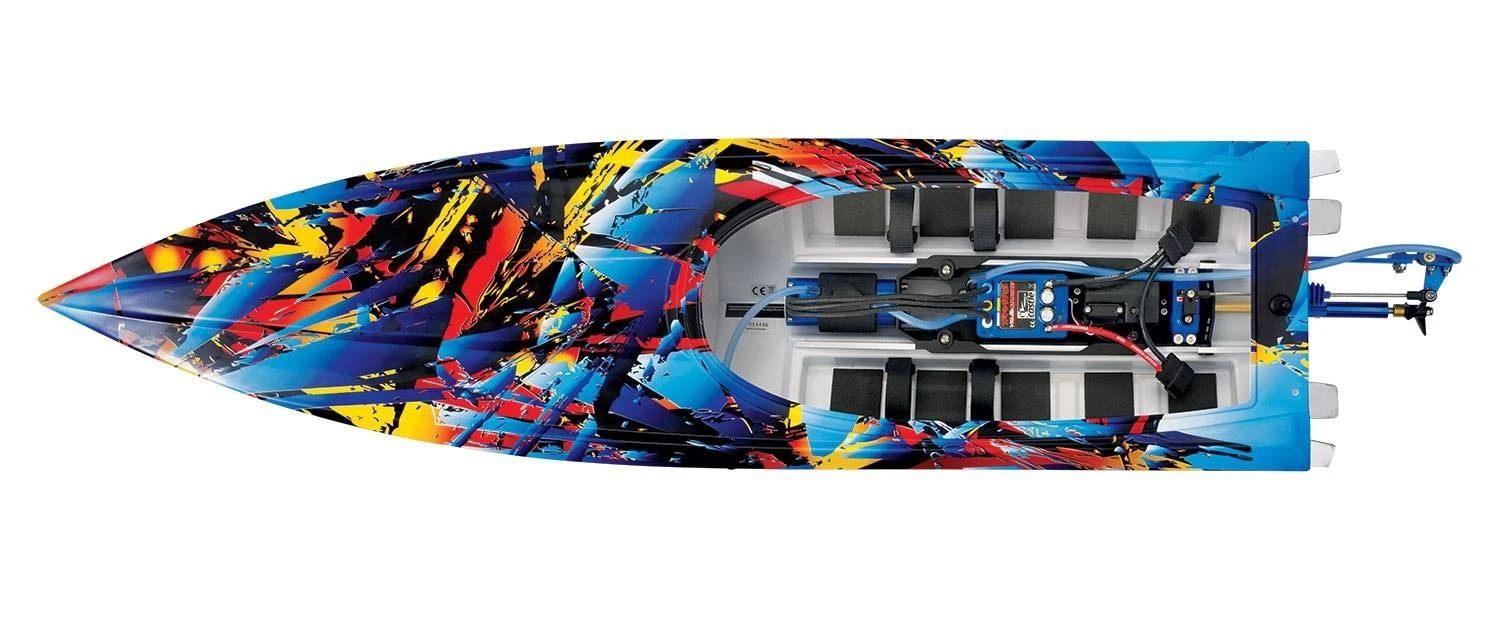

• Adjustable battery trays with hook-and-loop straps

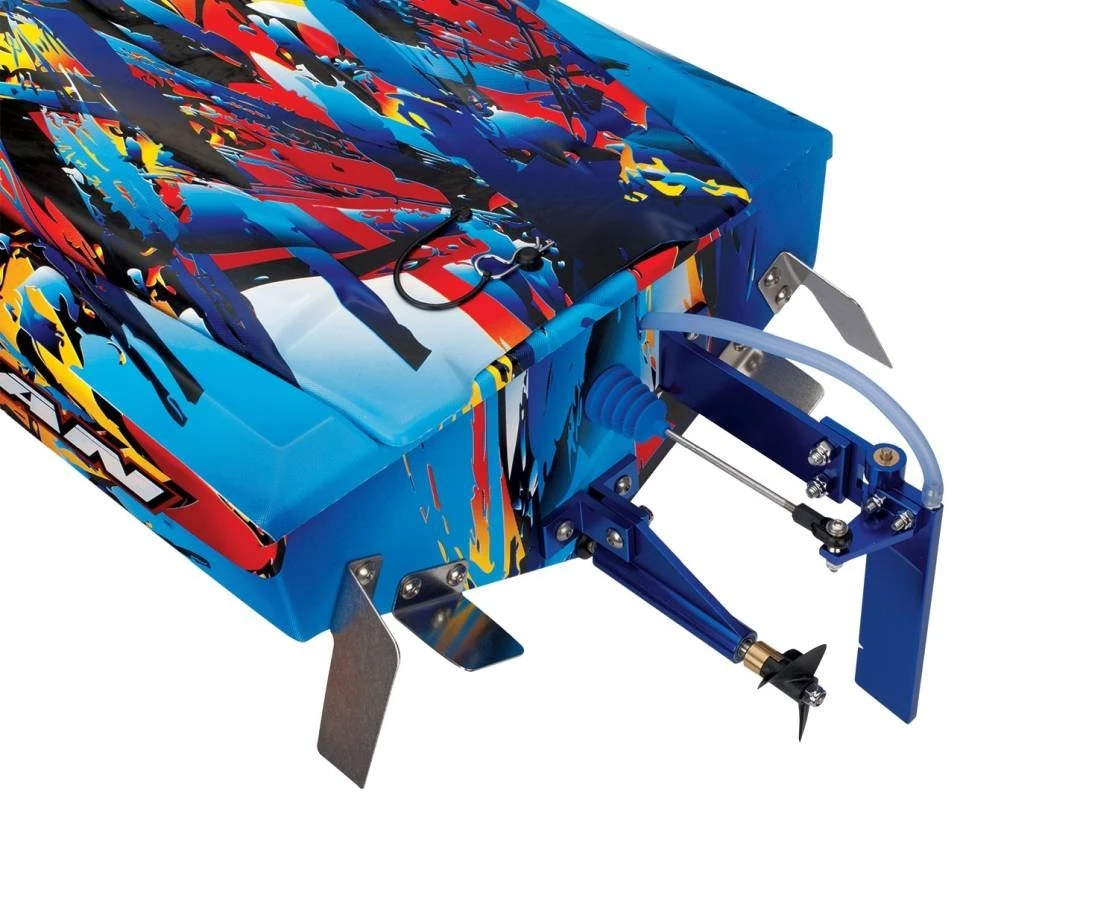

• Blue-anodized aluminum rudder support, rudder, and drive strut
• Stainless steel turn fins, trim tabs, and hardware
• TQi 2.4GHz transmitter
• Compatible with optional Traxxas Link Wireless Module ( TRA6511 ) for full Traxxas Link App capability with Apple iPad, iPhone or iPod touch (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver ( TRA6533 ) with Traxxas Stability Management, fail-safe security and integrated telemetry ports
• Traxxas Stability Management™
• Waterproof high-torque steering servo
• Sleek design with factory-applied graphics

Hull Type: Deep-V

Dead Rise Angle: 26 Degrees

Hull Length: 36.5 Inches (927mm)

Overall Length: 40.8 (1037mm)

Overall Height: 5.8 (147mm)

Beam (width): 9.5 Inches (243mm)

Weight: 72oz (2041g)

Speed Control Type: Traxxas Velineon® VXL-6s, Water-cooled

Input Voltage: 7-18 NiMH Cells, 4-6 LiPo Cells (8.4-22.2 Volts DC)

BEC Voltage: 6.0 VDC

BEC Current: 3A

Thermal Protection: Thermal shutdown

Low Voltage Detection: Yes (user enabled)

Motor (electric): Traxxas Velineon® 540XL Brushless, water-cooled

Drive System: Direct Drive, 0.150″ Flex Cable

Outdrive: Adjustable Aluminum

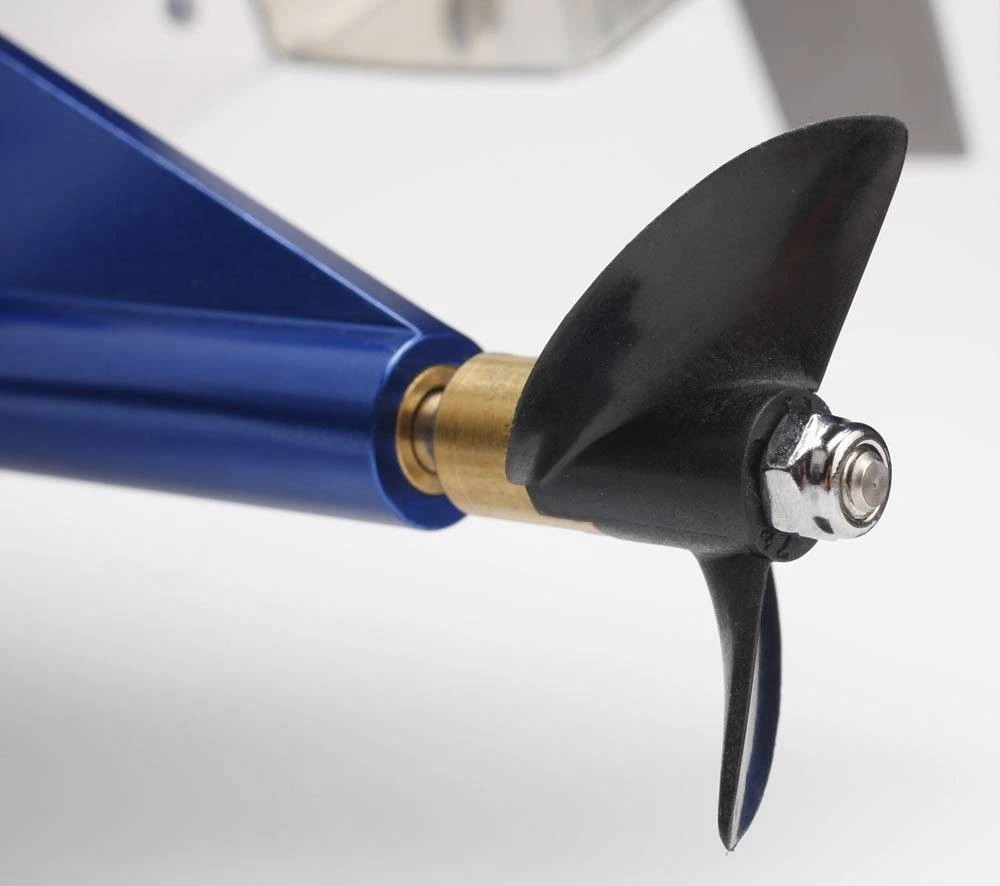

Prop: 2-blade composite, 42x59mm

Transmitter: TQi 2.4GHz (2-channel)

Receiver: 6533 2.4GHz Traxxas Stability Management® 5-channel

Servo: 2056 High-torque waterproof

Skill Level: 2
