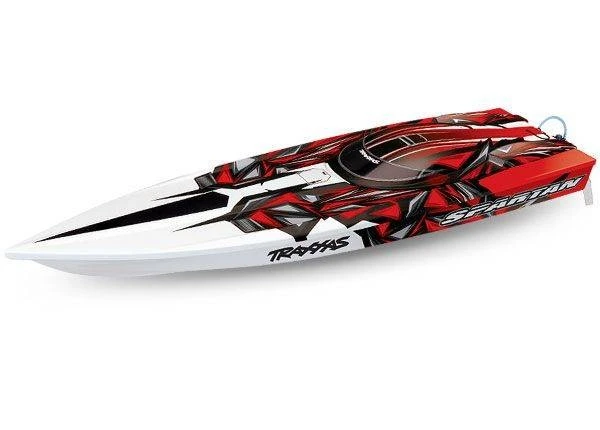

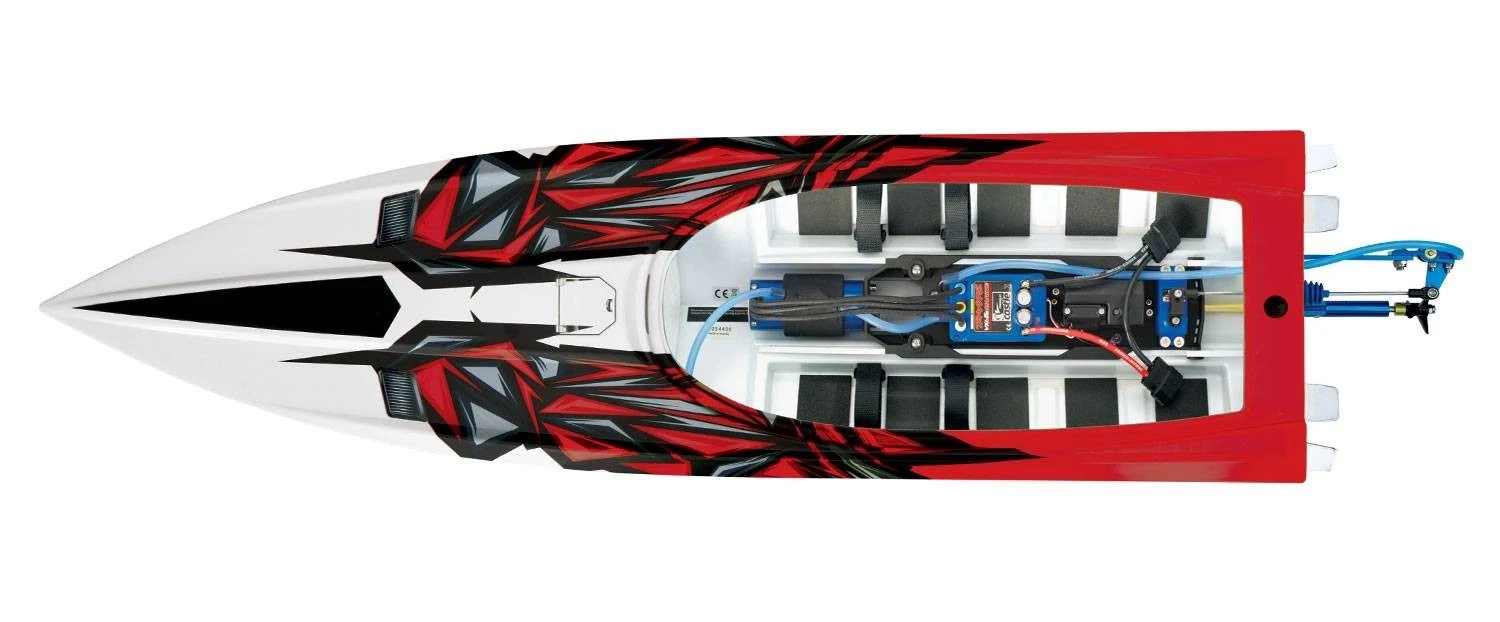

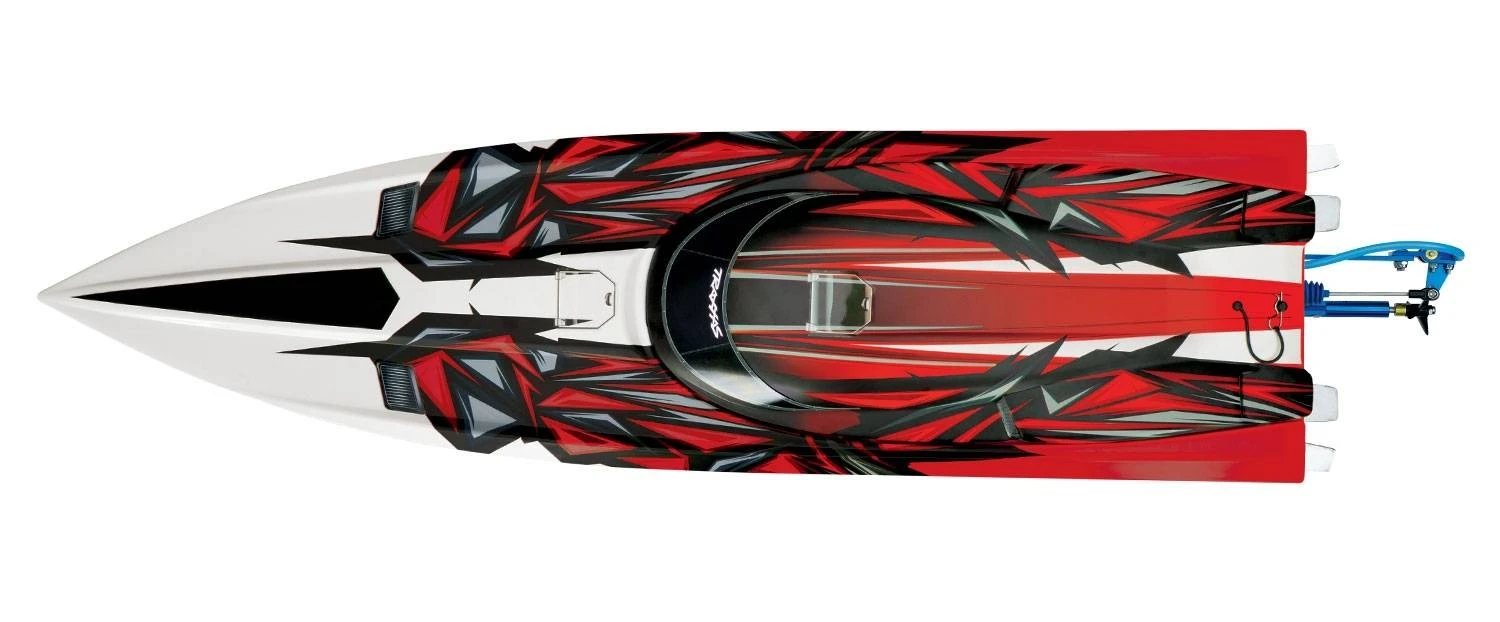

Traxxas Spartan Brushless 36″ Race Boat With TSM, Red

Spartan is the kind of boat you expect from Traxxas. Its 50+mph fury makes even the most insatiable, power-hungry enthusiasts jump up and take notice. Spartan means business with its super-rigid, 36-inch deep-V hull, smooth, cable-drive efficiency, innovative water cooling system, and precision aluminum and stainless steel drive controls. The clean, modern hull design is built up in layers for maximum rigidity and its bold new paint makes a statement on the water. The integrated battery trays secure a wide variety of battery packs from 8.4V NiMH batteries all the way up to 8400mAh 3s LiPo packs. A high-output TQi 2.4GHz radio with the innovative Traxxas Stability Management (TSM) system keeps Spartan under complete control as it slices through the water. Spartan delivers the power, speed, convenience, and fun for which Traxxas’ award-winning cars and trucks are known. Prepare yourself for the ultimate RC boating power trip, only from Traxxas.

• 30+mph with two 7.4V LiPo packs, 50+mph on 6s LiPo all-out! (batteries sold separately)
• 36″ deep-V hull for stable high-speed performance
• Water-cooled, waterproof VXL-6s Marine speed control
• LiPo compatible with built-in Low-Voltage Detection
• Traxxas High-Current Connectors (patented)
• Velineon 540 XL high-output brushless motor with highflow water-cooling jacket

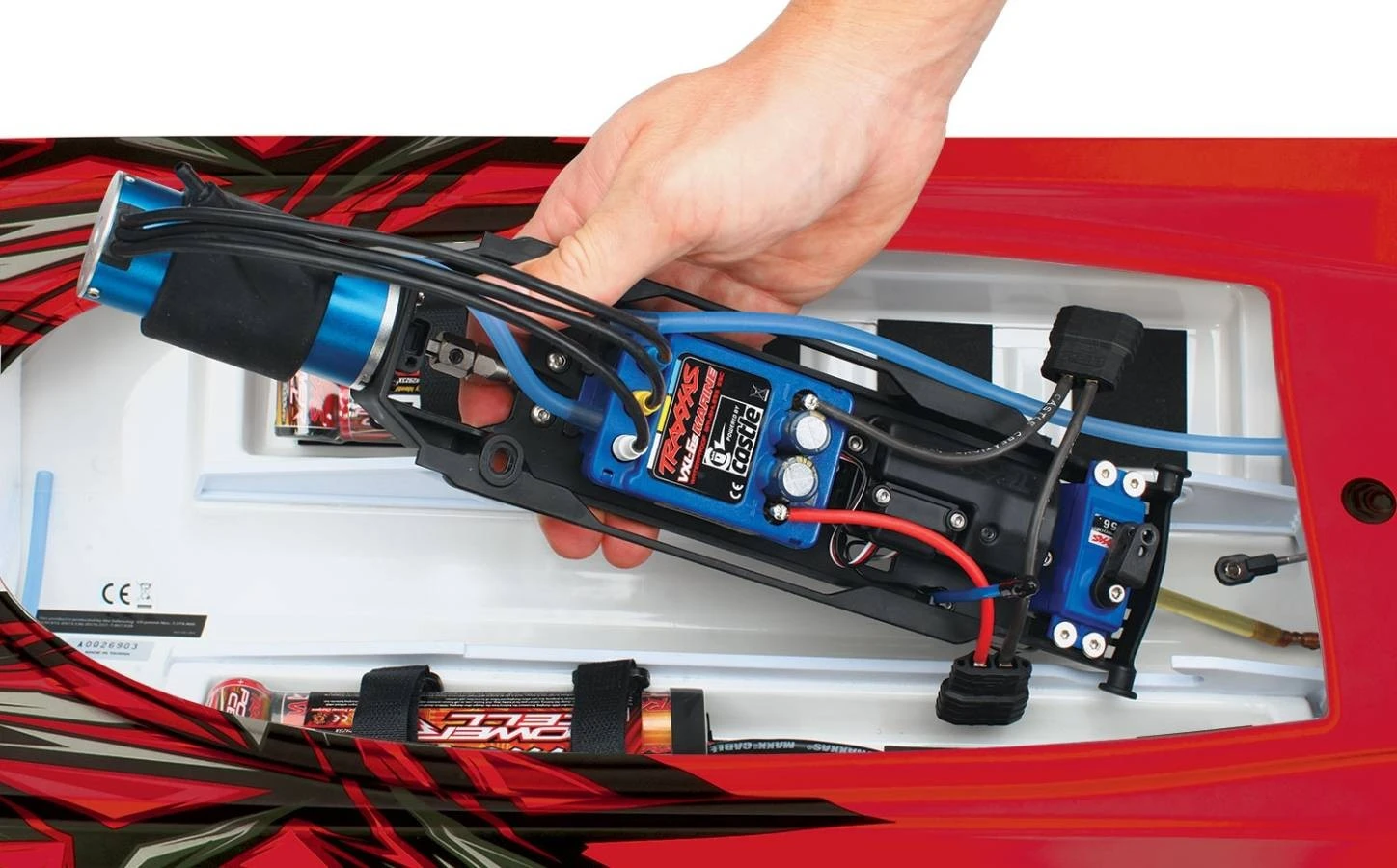

• Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
• Adjustable battery trays with hook-and-loop straps
• Blue-anodized aluminum rudder support, rudder, and drive strut
• Stainless steel turn fins, trim tabs, and hardware
• TQi 2.4GHz transmitter
• Compatible with optional Traxxas Link Wireless Module ( tra6511 ) for full Traxxas Link App capability with Apple iPad, iPhone or iPod touch (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control

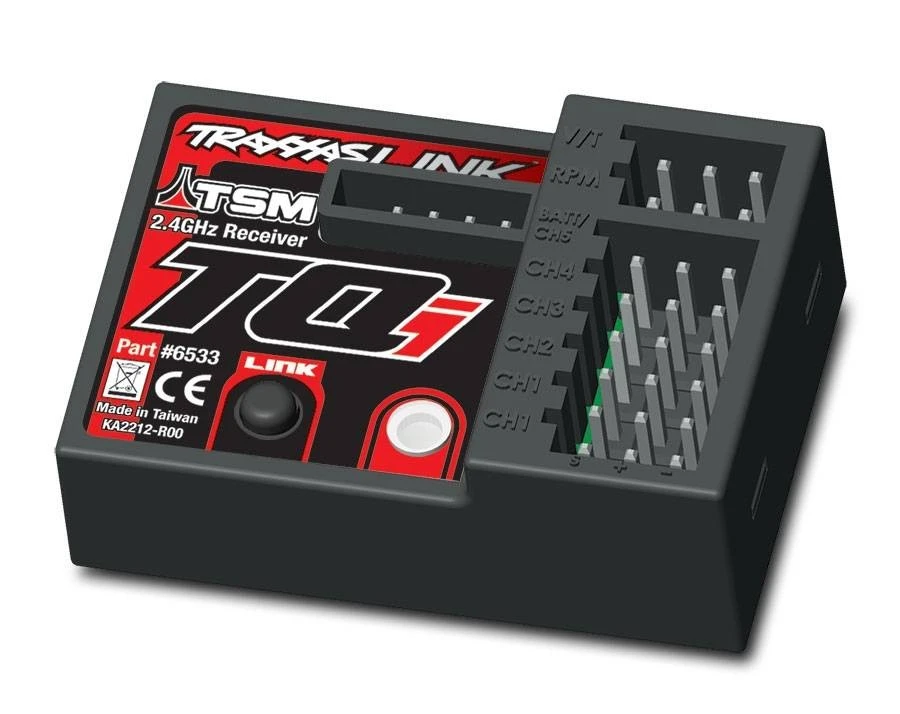

• TQi 2.4GHz 5-channel micro receiver ( tra6533 ) with Traxxas Stability Management, fail-safe security and integrated telemetry ports
• Traxxas Stability Management
• Waterproof high-torque steering servo
• Sleek design with factory-applied graphics
• Ready-To-Race®
• Traxxas factory support

Hull Type: Deep-V

Dead Rise Angle: 26 Degrees

Hull Length: 36.5 Inches (927mm)

Overall Length: 40.8 (1037mm)

Overall Height: 5.8 (147mm)

Beam (width): 9.5 Inches (243mm)

Weight: 72oz (2041g)

Speed Control Type: Traxxas Velineon® VXL-6s, Water-cooled

Input Voltage: 7-18 NiMH Cells, 4-6 LiPo Cells (8.4-22.2 Volts DC)

BEC Voltage: 6.0 VDC

BEC Current: 3A

Thermal Protection: Thermal shutdown

Low Voltage Detection: Yes (user enabled)

Motor (electric): Traxxas Velineon® 540XL Brushless, water-cooled

Drive System: Direct Drive, 0.150″ Flex Cable

Outdrive: Adjustable Aluminum

Prop: 2-blade composite, 42x59mm

Transmitter: TQi 2.4GHz (2-channel)

Receiver: 6533 2.4GHz Traxxas Stability Management® 5-channel

Servo: 2056 High-torque waterproof

Skill Level: 2

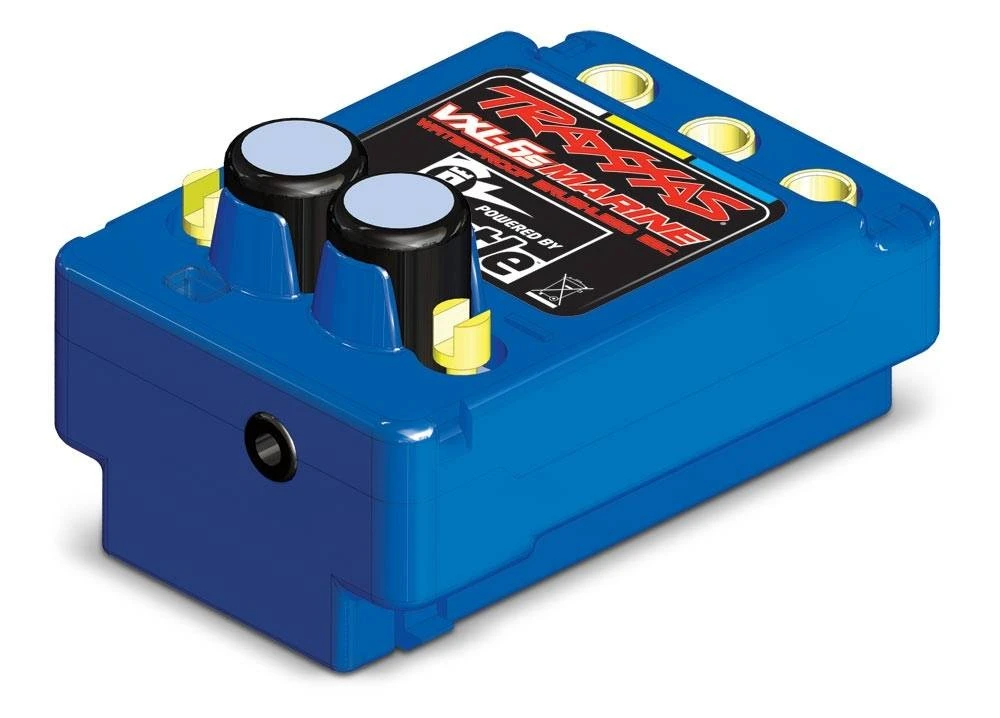

Velineon VXL-6s Marine Brushless System:
Extreme Velineon brushless horsepower delivers the muscle you want with the reliability you expect from Traxxas. The VXL-6s Marine electronic speed control is built for true 6S LiPo power.* On-board low voltage detection helps you maintain your batteries. The extra voltage and current maximizes the potential of the Velineon 540XL motor for extreme 50+mph speed. The sensorless Velineon 540XL motor is designed for high-rpm performance and reliability with ultra high-temperature sintered Neodymium magnets, a precision-balanced rotor, and efficient, high-speed ball bearings. Cooling water is routed through the innovative speed control case and then into a unique sealed motor jacket that allows cooling water to flow directly against the motor for maximum possible heat transfer. The Spartan keeps its cool, run after run, for trouble-free all-day fun.

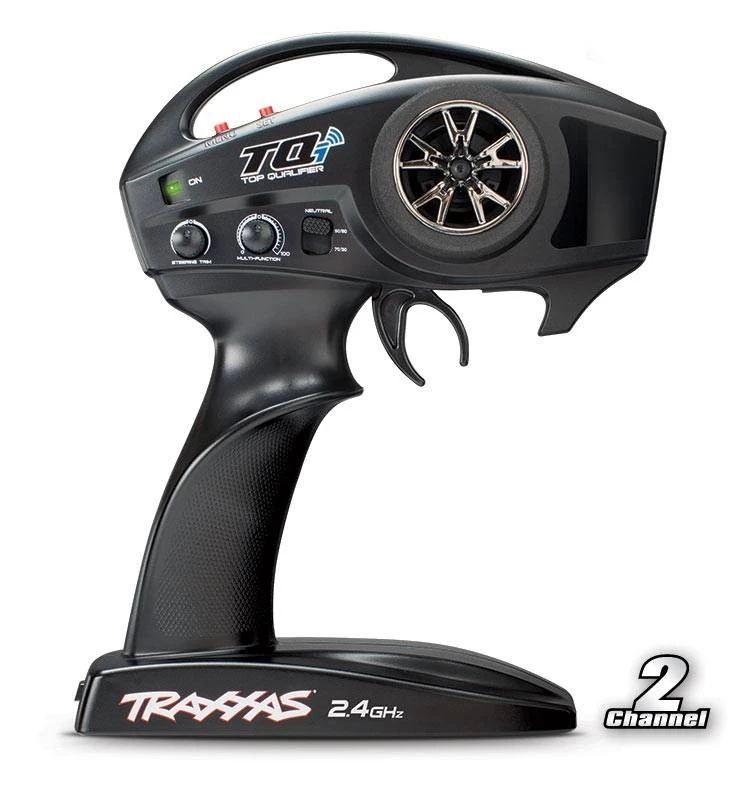

The World’s Most Advanced Ready-To-Race® Radio System:
Traxxas models deserve the world’s most advanced Ready-To-Race® radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It’s so advanced; it doesn’t even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Traxxas Link Wireless Module ( tra6511 , sold separately) that turns your iPad® iPhone® or iPod touch® into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

Modern Reinforced Hull:
The Spartan’s clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. Lightweight yet incredibly strong, Spartan’s ABS hull is designed to withstand the stress of high-voltage brushless horsepower, without the weight penalty of a fiberglass hull. The transom bulkhead also incorporates bosses for the trim tabs, turn fins, rudder support, and drive strut, eliminating the need for additional hardware inside the hull. In the Spartan’s bow, molded foam is form-fitted to the interior, adding security as it further stiffens the hull. Outside the hull, Spartan impresses with its wild new factory-applied graphics—a Traxxas trademark.

Body-Clip Lanyard:
You’ll never drop a body clip into the lake with Spartan! A flexible rubber lanyard keeps the body clip secured to the hatch so it’s always at the ready. It’s just one of the many small details that makes a day at the lake with Spartan fun and easy.

Streamlined Water Outlet:
Nothing was overlooked in the effort to optimize every detail of the Spartan—even the water outlet is unique! Instead of an unsightly piece of tubing, Spartan’s water outlet is streamlined and integrated into the hull, maintaining its sleek look.

Factory-Applied Graphics:
Spartan’s bold graphics make it the most stunning boat on the lake, with a custom look even pro painters can’t match. No painting or decals are required; all the graphics are pre-applied to get Spartan out of the box and into the water with speed and style.

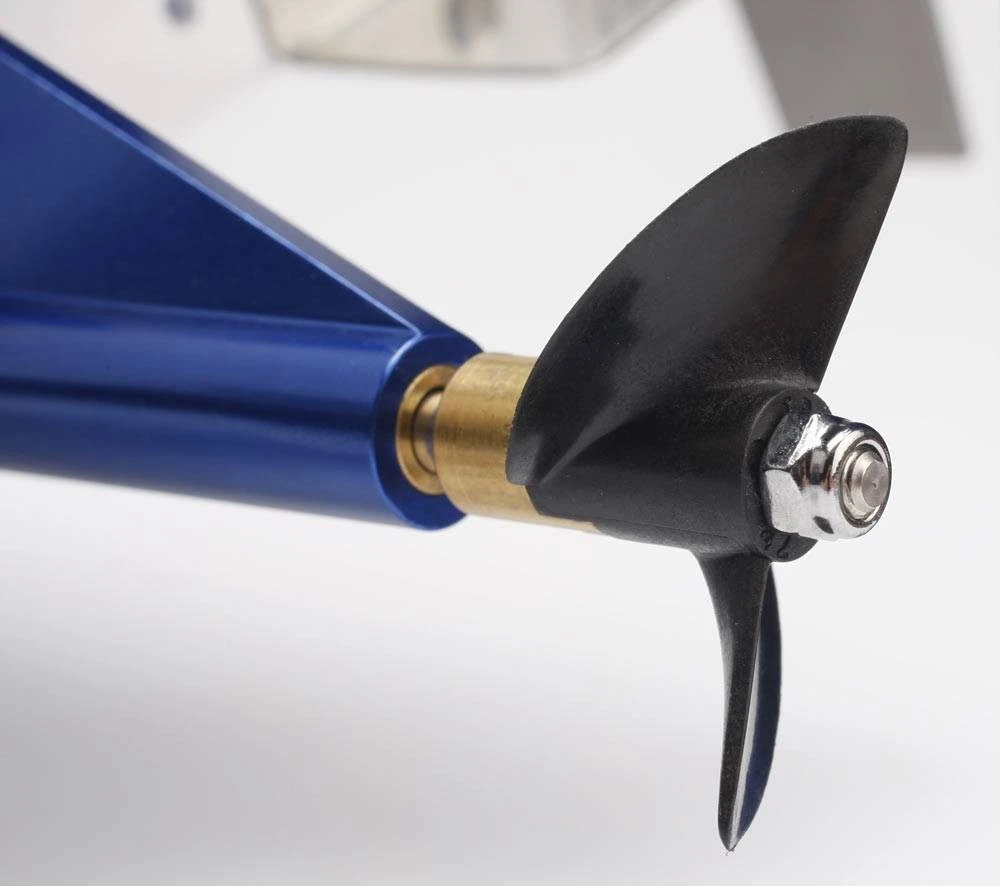

High-Performance Prop:
Spartan’s surface-piercing prop is optimized to get the hull on plane quickly without cavitation and to run at maximum speed with the least current draw. Traxxas engineers spent many hours testing prop configurations to find the perfect balance of performance, efficiency, and durability. Molded composite construction makes the prop light and tough, with no balancing or sharpening required.

Stainless-Steel Trim Tabs & Turn Fins:
Spartan’s dual trim tabs and turn fins are critical to its high-speed performance. The parts are precision die-cut and bent from stainless steel to resist corrosion as they provide aggressive cornering ‘bite’ and the proper hull attitude for water-boiling speed.
