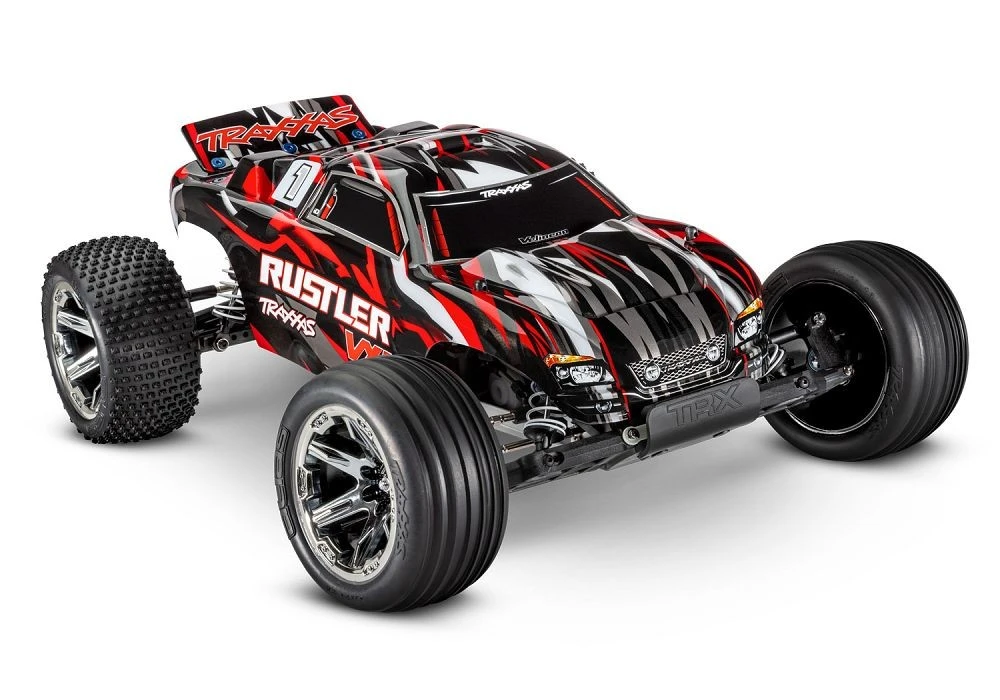

Traxxas Rustler VXL 1/10 2WD Magnum 272R Stadium Truck, Red

The Traxxas Rustler VXL 1/10 scale 2WD stadium truck. Fully assembled and Ready-To-Race, with Traxxas Stability Management TSM, TQi 2.4GHz radio system, Velineon brushless power system, Magnum 272R transmission, and ProGraphix painted body.

• Traxxas Stability Management TSM
• Powered by the Velineon Brushless Power System
• Rustler VXL reaches speeds in excess of 70mph!*
• Waterproof electronics extend brushless power and performance to water, mud, and snow
• Velineon VXL-3s Electronic Speed Control
• LiPo and NiMH compatible with two-stage low-voltage detection
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ – 50% forward / brake / 50% reverse (patented)
• Velineon 3500 brushless motor:
• Consistent high-power output
• Low-maintenance design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• TQi 2.4GHz transmitter:
• Compatible with optional TQi Traxxas Link Wireless Module ( tra6511 ) to access full Traxxas Link app functionality
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) ( tra6533 ), fail-safe security and integrated telemetry ports
• Digital high-torque Traxxas 2075 waterproof steering servo
• Durable steel turnbuckles and captured rod ends
• High Performance Magnum 272R transmission:
• All-metal internal gears
• Sealed beveled-gear differential
• 3.2 mm aluminum motor plate
• Low-profile case
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch
• External gear cover with easy slipper access
• Updated heavy-duty telescoping U-joint driveshafts and yokes

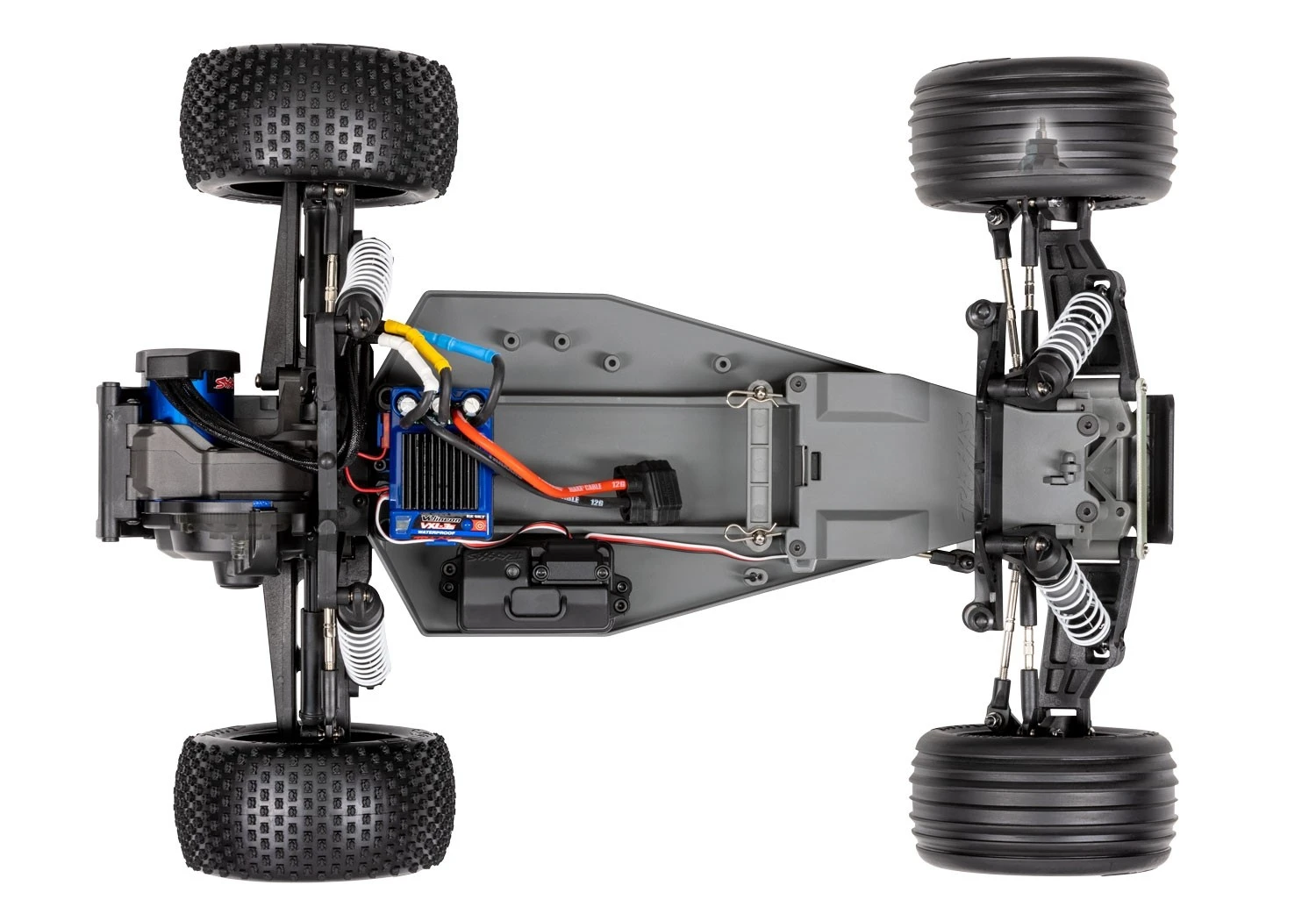

• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment

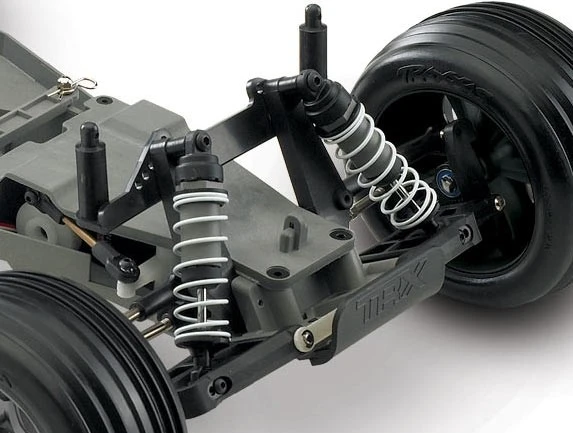

• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias step-pin rear tires and Alias ribbed front tires offer superior
• off-road traction
• Rustler’s tires include performance foam inserts and come
• pre-glued on black chrome 2.8″ All-Star™ wheels
• Tough ProGraphix pre-painted body
• Wing attaches securely to the body with precision hex hardware

Length: 17.5 inches (445 mm)

Front Track: 12.25 inches (311 mm)

Rear Track: 12.25 inches (311 mm)

Weight: 59.6 ounces (1.69 kg)

Height (Overall): 7 inches (178 mm)

Wheelbase: 11.4 inches (289 mm)

Front Shock Length: Long

Rear Shock Length: XX-Long

Front Tires (Pre-Glued): Alias® Ribbed 2.8″

Rear Tires (Pre-Glued): Alias® Step-Pin 2.8″

Front Wheels: 2.8″ Black-Chrome (All-Star)

Rear Wheels: 2.8″ Black-Chrome (All-Star)

Electronic Speed Control: VXL-3s Electronic Speed Control

Motor (Electric): Velineon® 3500 Brushless

Gear Ratio (internal): 2.72 (Final Drive: 9.05)

Differential Type: Planetary

Gear Pitch: 48-Pitch

Transmission: Magnum 272

Steering: Bellcrank

Chassis Type: Modified Tub

Chassis Material: Composite Nylon

Radio System: TQi 2.4GHz Radio System w/TSM Receiver

Top-Speed: 70+mph**

Skill Level: 2

*Battery Tray Dimensions: 166 mm x 47.5 mm x 28 mm

*Battery expansion kit available ( TRA3725X )

**With 3S LiPo battery and optional 31-tooth pinion gear (sold separately)

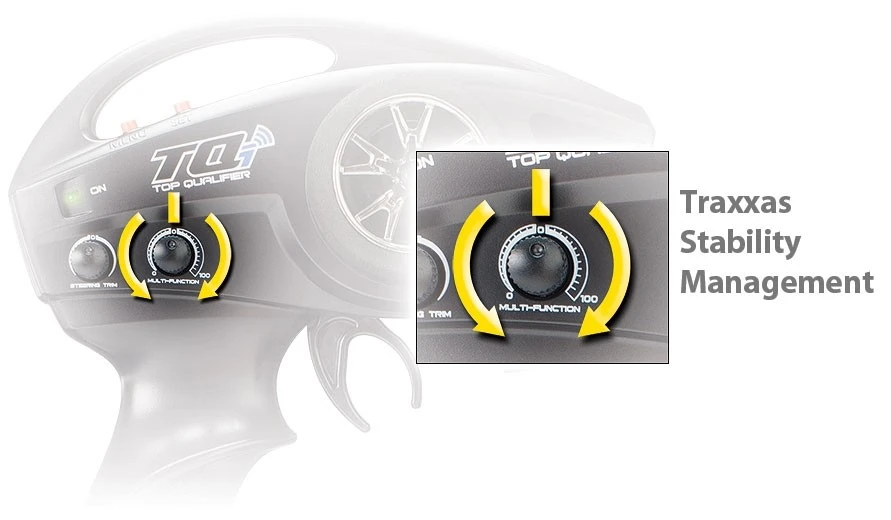

Traxxas Stability Management:
Traxxas Stability Management TSM® makes it easier to control your vehicle on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM senses the vehicle’s direction and makes steering corrections to provide straight-ahead full throttle acceleration without loss of control. When cornering, TSM makes intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. TSM also improves braking performance by keeping the front wheels arrow straight until they come to a complete stop.

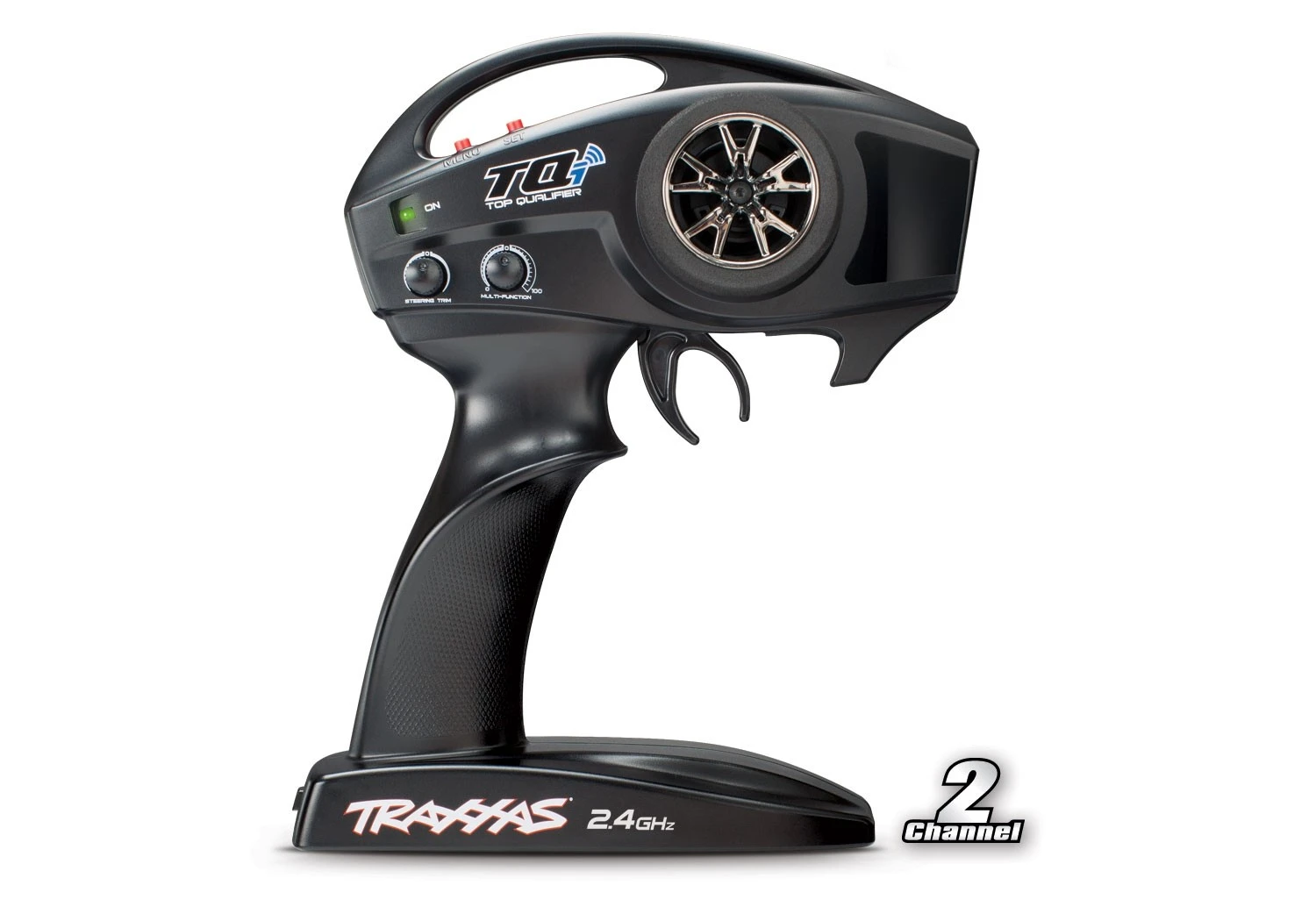

The World’s Most Advanced Ready-To-Race® Radio System:
The radio system is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance.

Traxxas Link Wireless Module Compatible:
The TQi’s most important feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module (#6511, sold separately) and turn mobile device into a powerful tuning tool. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

5-channel Micro Receiver with Fail-Safe Security:
The TSM TQi 2.4GHz micro receiver uses an integrated LINK button for fast and easy binding. A two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters. In the event of signal loss, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated. The 5-channel receiver features three telemetry ports to allow real-time data to be transmitted from your vehicle to the TQi transmitter.

Maxx Cable 12-Gauge Wire:
This super-flexible, high-current, low-resistance 12-gauge, wire flows energy in and out of the electronic speed control for maximum performance. The Traxxas Connector combines with Maxx cable to extract all the power your battery can supply.

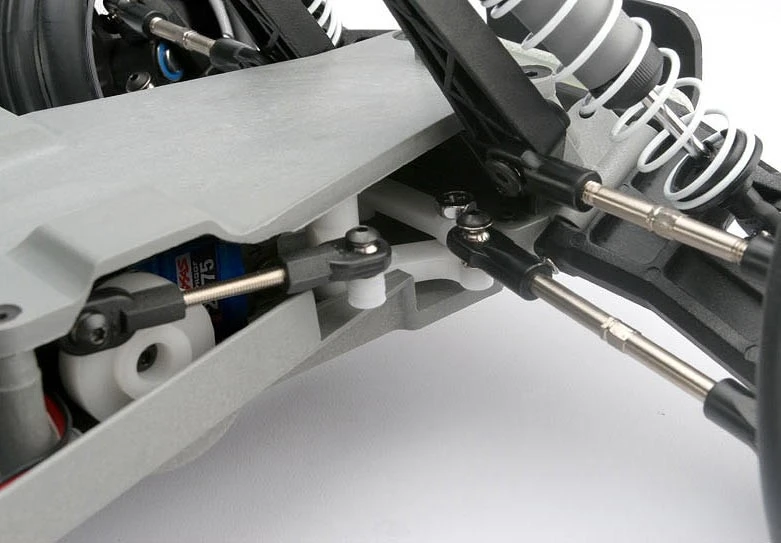

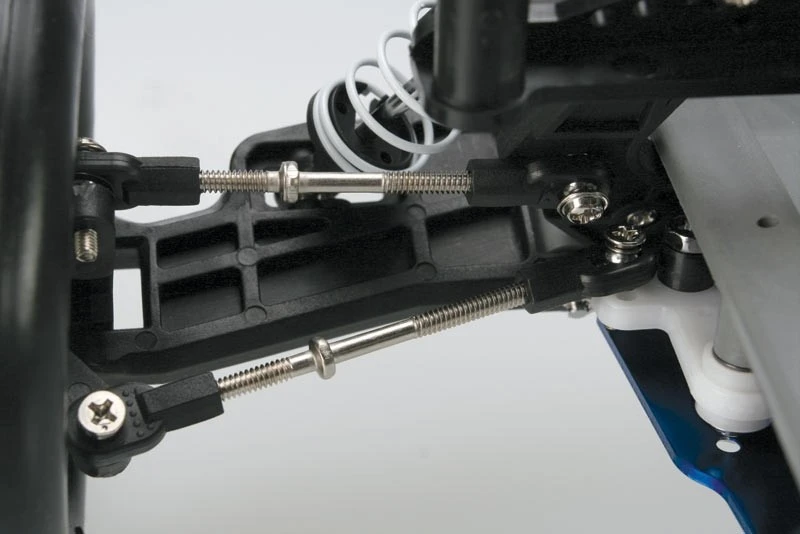

Adjustable Steel Turnbuckles:
Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. Rustler VXL is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and won’t pop off.

Tires and Wheels:
Rustler VXL’s Alias® step-pin rear tires and front ribbed tires provide superior control with performance-engineered foam inserts to keep the truck firmly planted on extreme off-road terrain. The 2.8″ black-chrome 6-spoke wheels feature a lightweight horizontal bead to hold the tire to the rim even under extreme rpm.

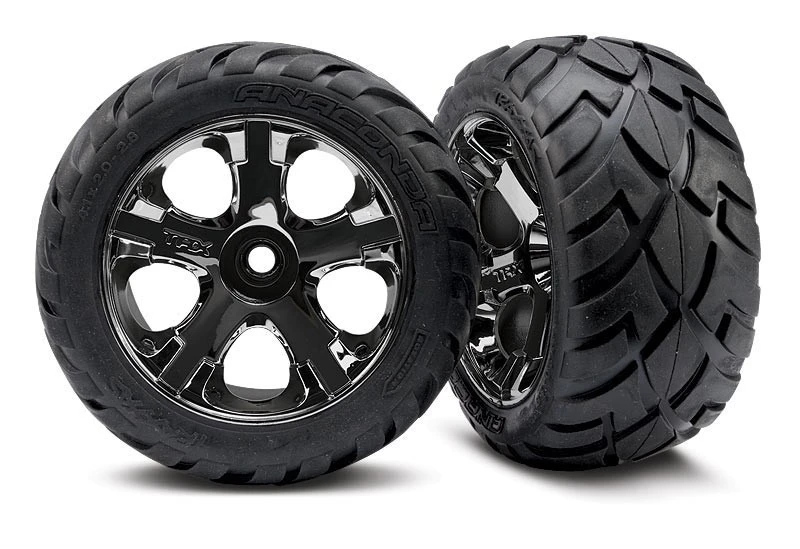

Anaconda® 2.8″ Tires (sold separately):
Transform your Rustler VXL into a menacing street machine with available Anaconda 2.8″ street treads. These sticky, high-traction tires provide aggressive handling on paved surfaces. The Anaconda tires’ large tread blocks provide incredible grip and long-wearing performance. Buy them pre-glued and ready to install for instant on-road action.

Included Optional Pinion Gear:
The Rustler VXL reaches a scorching 70+mph top speed using an optional 31-tooth pinion gear, 76-tooth spur gear, and a 3-cell 11.1V Lithium-polymer battery pack (sold separately). Out of the box, the installed 25-tooth pinion gear is just right for all-around, on or off-road action. Installing the included optional 28-tooth pinion gear opens the door to breakneck 60+mph speeds!

ProGraphix® Body:
Rustler VXL’s fully trimmed and painted ProGraphix body comes with pre-applied decals to save you time and get you driving just minutes out of the box. The rear wing mounts to the body using countersunk aluminum hardware for unmatched strength. Traxxas’ ProGraphix bodies are the hottest looking bodies around and only available on Traxxas Ready-To-Race® models.

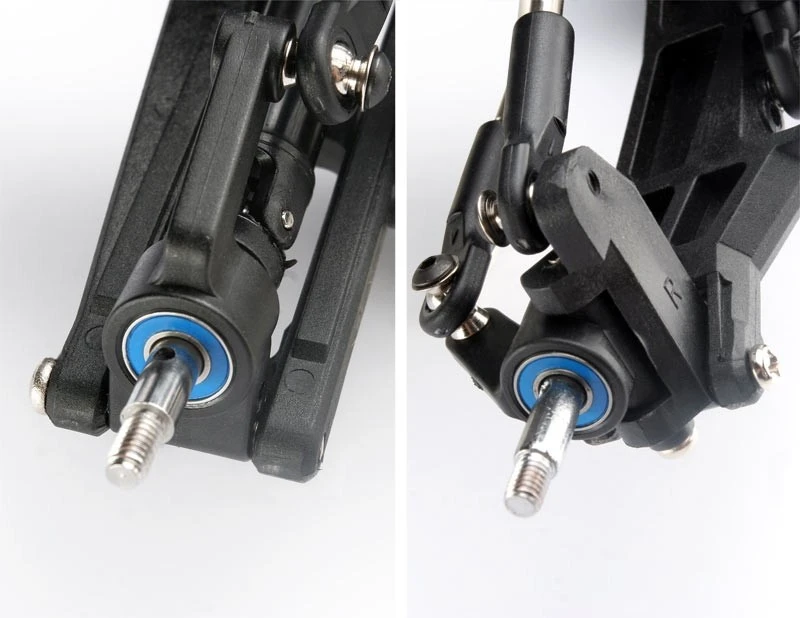

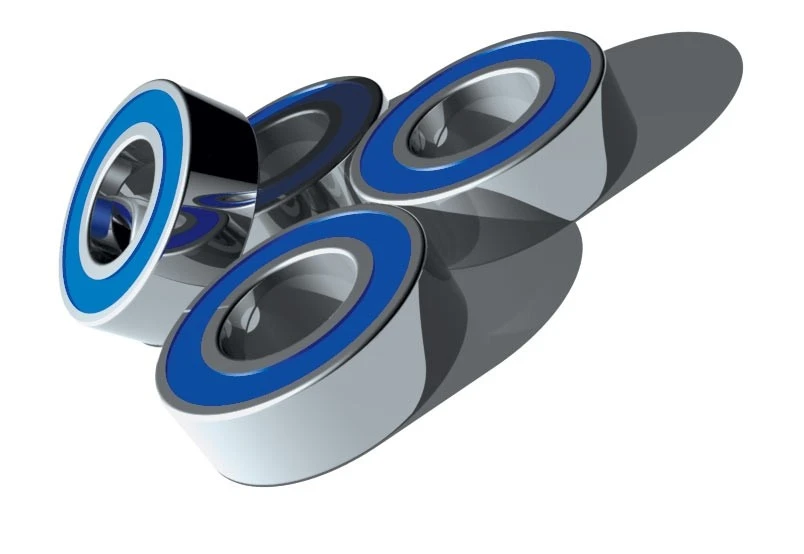

Rubber-Sealed Ball Bearings:
Precision 5×11 mm rubber-sealed bearings offer super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and provide virtually maintenance free reliability.
