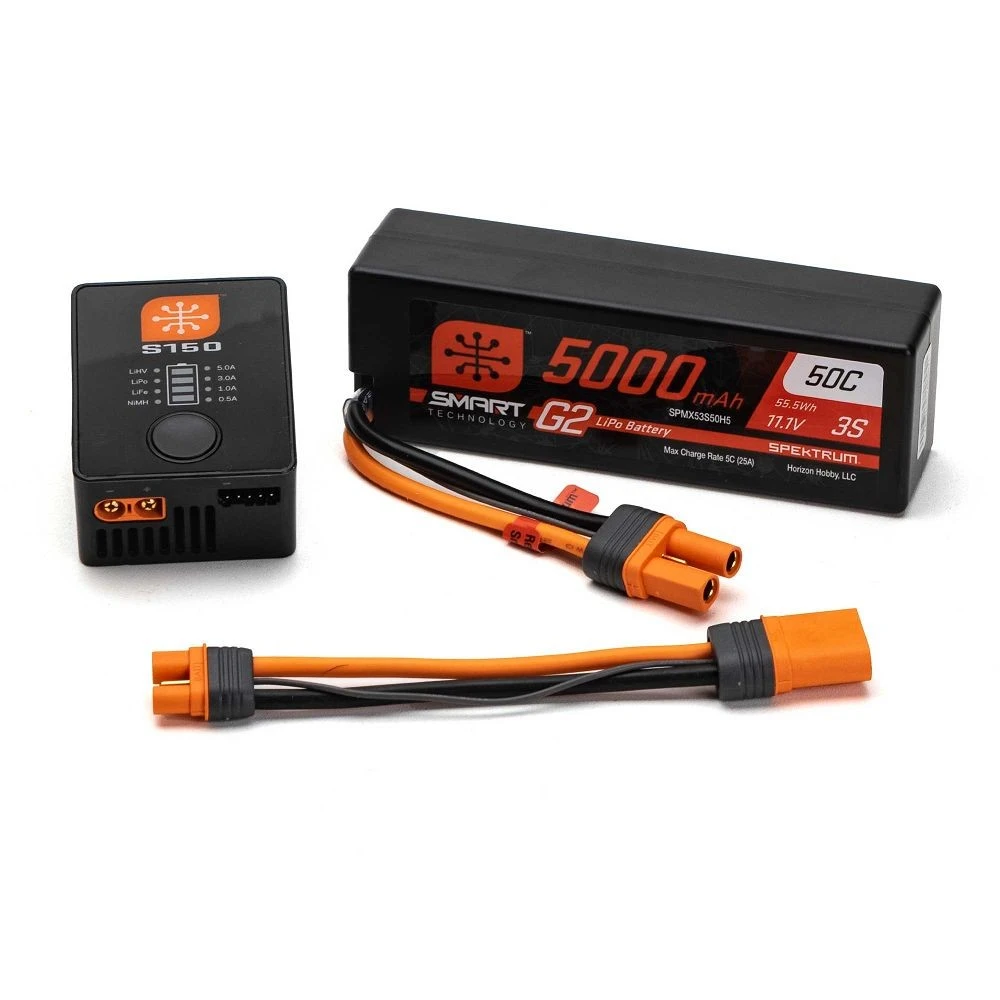

Spektrum Smart G2 Powerstage Bundle (Surface 3S)

Spektrum Smart G2 Battery:
Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. “Generation 2” features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.

For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery’s innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.

Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that’s three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com

Spektrum Smart Charger:
With the compact S150 AC Mini Smart Charger, modelers of all experience levels can enjoy the charging advantages of innovative Spektrum™ Smart technology. This 50 watt charger brings advanced Smart charging capabilities and features to an affordable platform that features an easy-to-use, one-button interface.

When used with Spektrum Smart batteries with an IC3™ or IC5™ connector, the S150 uploads charging data from each battery’s integrated memory chip. That pack-specific data helps you evaluate battery health and makes charging a snap — because the S150 can read and make the correct chemistry setting automatically. The S150 AC Mini Smart Charger is compatible with LiPo, Lilon, LiHV, and NiMH battery types.

• Battery:
• Powerful 50C continuous discharge rating to deliver high performance and longevity
• Balance charge through the IC5 connector data wire — with only one connection, no balance lead required
• Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
• Integrated microchip stores unique parameters for each battery
• IC5 connectors may be connected to a device with an EC5 connector
• Charger:
• Recognizes unique Smart battery data for safe, easy charging
• Charges 2-4S LiPo, Lilon, LiHV, LiFe batteries 300mAh and above
• Also charges 2-12 cell NiMH batteries
• Can also be used to charge batteries without Smart technology
• 50 watts of charging power, up to 5 amps of charge current
• One-button interface and simple to understand charging indicator
• Adaptable for AC power input (includes AC to 20V DC power supply)
• Quiet internal cooling fan maintains a safe, efficient operating temperature
• Accepts future Smart technology updates

– Battery –

Connector Type: IC3

Battery Balance Connector: JST-XH

Capacity: 5000mAh

Voltage: 11.1V

Battery Type: LiPo (3.7V per cell)

Technology: Smart

Charge Rate: 5A – 1C

Cell Configuration: Stick

Dimensions: 5.45×1.83×1.37in (138x46x35mm) (LxWxH)

Hard Case: Yes

Wire Gauge: 12AWG

– Charger –

Input Voltage: 100-240V AC

Number of Cells: 2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH

Output: 5A

Normal/Standard Charge Current: 1.0 – 5.0A

Output Connector: IC3 (compatible with EC3)

Reverse Polarity Protection: Yes

Amp Meter: No

Discharge: Yes

Safety Timer: Yes

Selectable Charge Rate: Yes

Software Updates: Yes

Low Input Voltage Protection: Yes

Maximum Charge Rate: 17.4V, 5A, 50W

Battery Temperature Monitoring: No

Over Current Protection: Yes

Peak Detection: Yes

Thermal Protection: Yes

Integrated Balancing: Yes – Internal Balancer & Internal Adapter

Programmable: No

Short Circuit Protection: Yes

Application: Battery Charger for Electric Powered RC Vehicles and Aircraft

Product Height: 1.12″ (28 mm)

Product Width: 1.9″ (48 mm)

Product Length: 2.5″ (64 mm)

Product Weight: 2.2oz (63g)

Voltage Meter: No
