Savox Ryan Cavalieri Edition Coreless Digital Servo, .08sec/166oz @6V
Original price was: $74.99.$52.49Current price is: $52.49.
- We take quality seriously.
- Control the delivery date and try to deliver it in the fastest time
- Uncompromising quality, every time.
- Best price, safe shopping guarantee

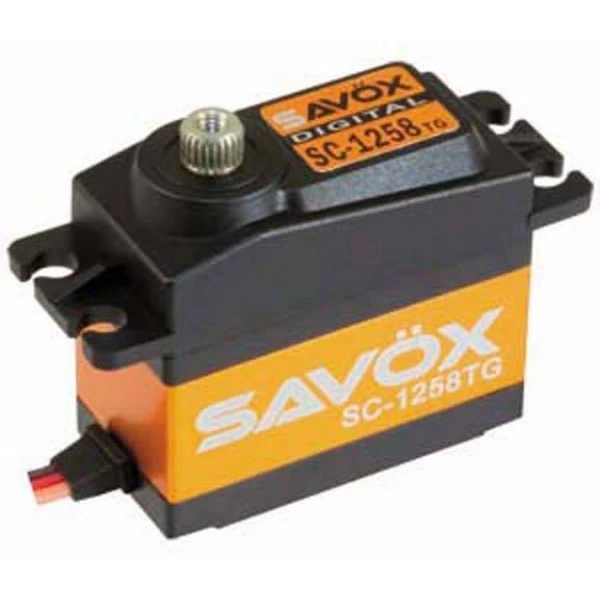

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.
features
- Extremely strong titanium gears ensure long-life, durability, and light weight.
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
- Aluminum middle case allows for cooler operating temperatures.
Specs
Operating Temperature: 14° – 122°F (-10° – 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
Torque @ 4.8v: 9.6kg/133.3oz-in
Torque @ 6v: 12.0kg166.6oz-in
Speed @ 4.8v: 0.10 sec/60 deg
Speed @ 6v: 0.08 sec/60 deg
Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
Weight: 64g
| Part Number | SAVSC1258TG |
|---|---|
| Maximum Travel | Appx 130° (900 → 2100 µ second) |
| Dimensions L x W x H (mm) | 40.8 x 20.2 x 37.2 |
| Speed @ 6v | 0.08 sec/60 deg |
| Speed @ 4.8v | 0.10 sec/60 deg |
| Torque @ 6v | 12.0kg166.6oz-in |
| Torque @ 4.8v | 9.6kg/133.3oz-in |
| Motor Type | Coreless |
| Refresh Rate | 333 Hz |
| Pulse Width Range | 800 → 2200 µ second |
| Operating Temperature | 14° – 122°F (-10° – 50°C) |
| Neutral Position | 1500 µ second |
| Operating Travel | 100° (1000 → 2000 µ second) |
| Bearings | 2BB |
| Output Gear Spline | 25 Tooth |
| Wire Length | 250 +/- 5mm |
| Idle Current | 5mA @4.8V, 5mA @6.0V |
| Stall Current (at locked) | 4000mA @4.8V, 5000mA @6.0V |
| Running Current (no load) | 100mA @4.8V, 120mA @6.0V |
| Weight | 64g |
