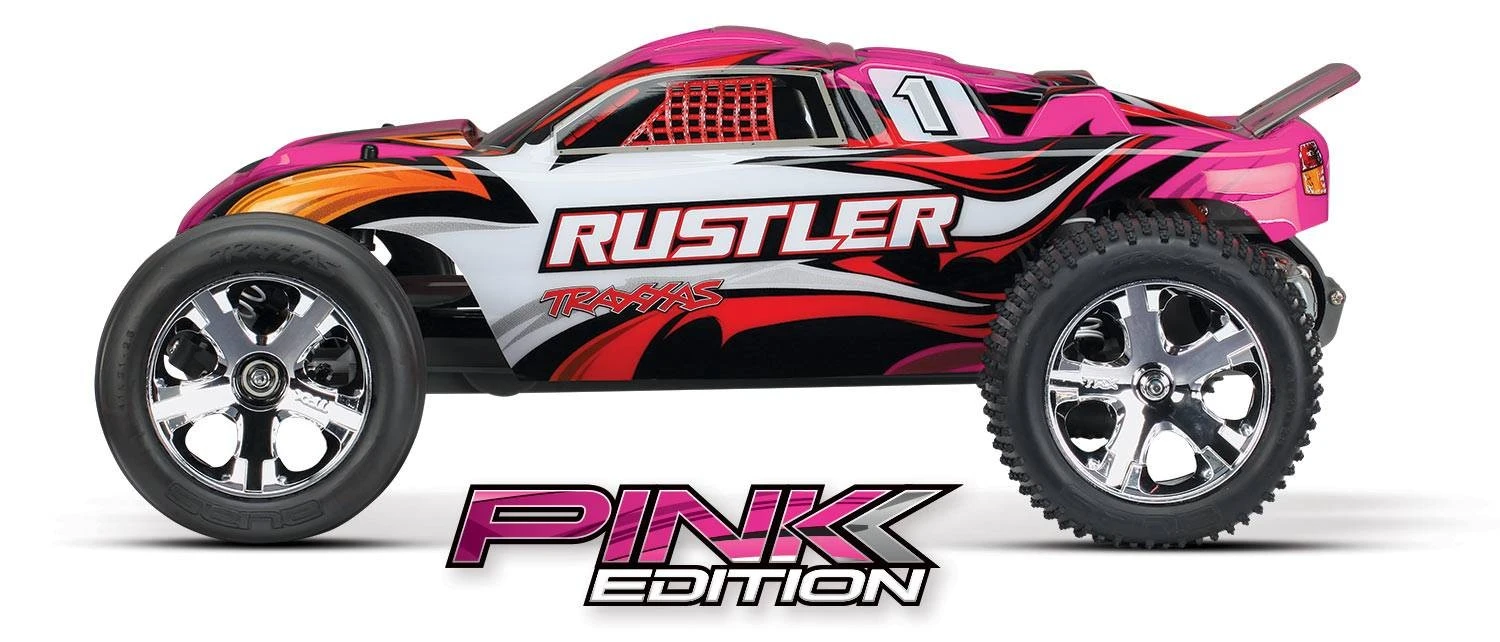

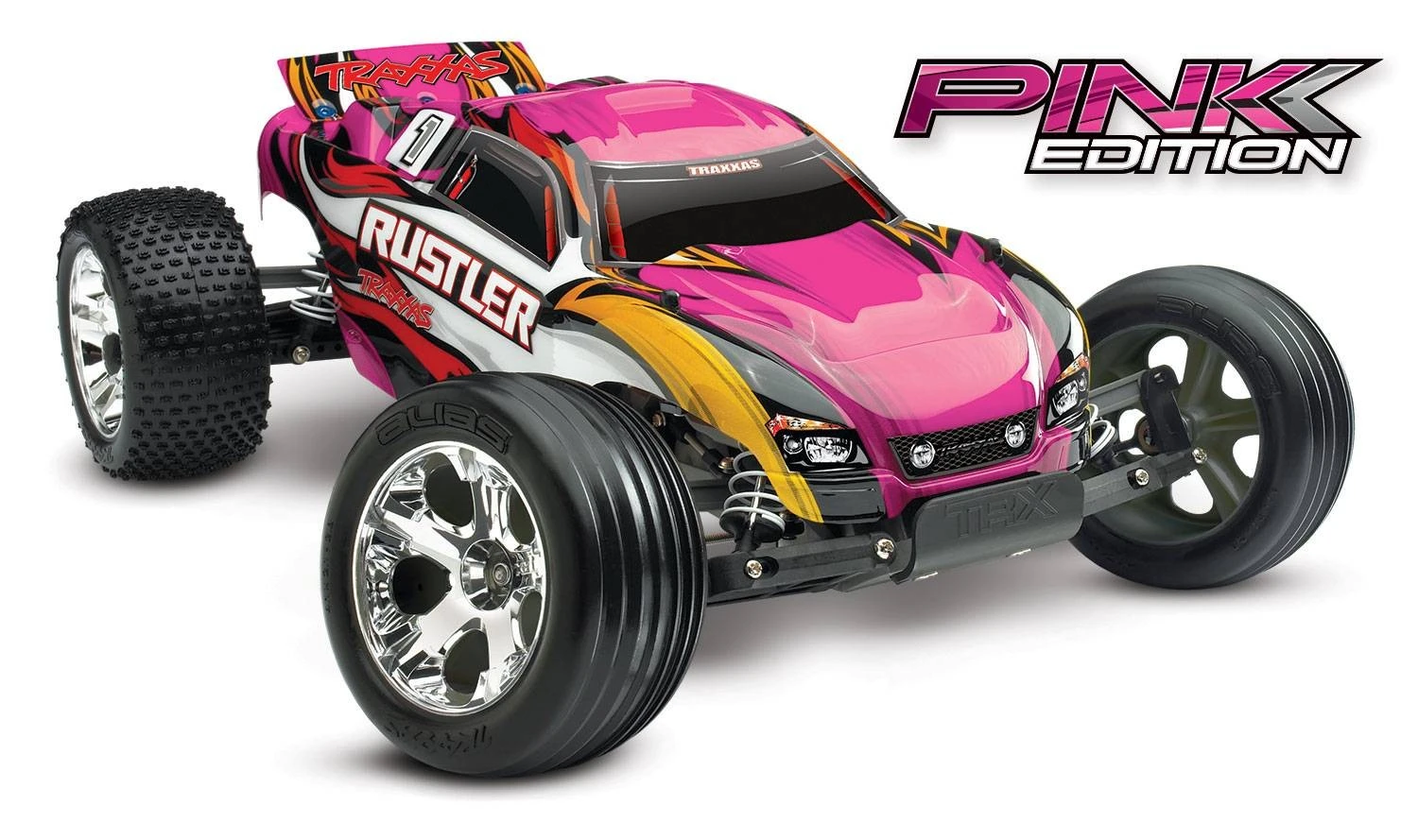

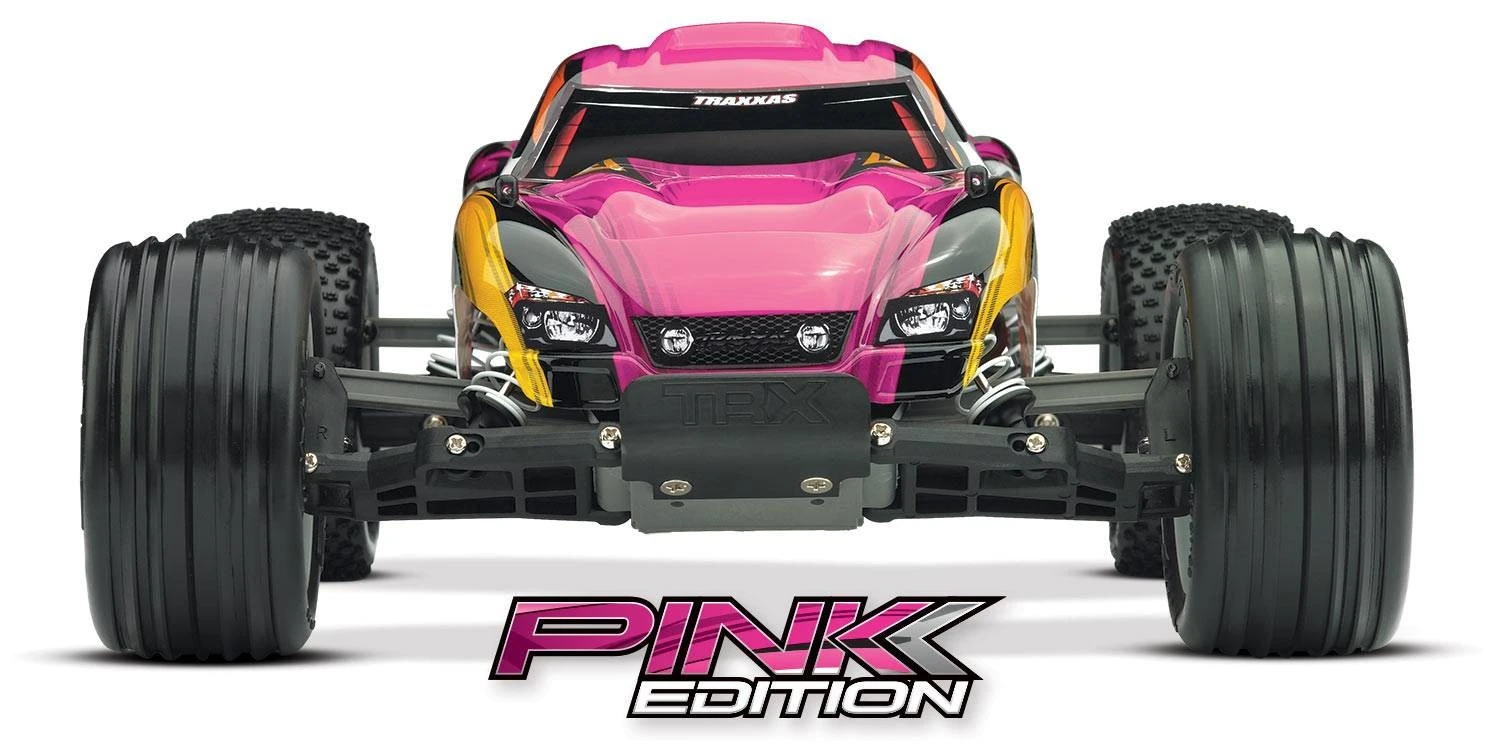

Rustler 1/10 Scale Stadium Truck With TQ 2.4 GHz Radio System, Pink

The Traxxas Rustler is a proven favorite with a formula for rugged fun that nothing else can touch. The Rustler blows the doors off the competition with more power, smoother control, better grip, and performance that makes it one of the fastest Ready-To-Race® electric trucks available. The Rustler rips off-road roost with its powerful Titan® 12-Turn modified 550 motor and XL-5 Electronic Speed Control. It’s made for power-sliding, full-throttle, off-road action and aggressive driving fun—and not just in the dirt! With Traxxas’ exclusive waterproof electronics, Rustler blasts through puddles, mows through mud and shreds snow. Your R/C adventures are limited only by your imagination. With a top speed of 35+mph*, Rustler leaves everything else back on the work bench.

The Rustler’s exclusive watertight, sealed electronics provide the freedom to drive through water, mud, snow, and other wet-running conditions. The XL-5 electronic speed control and the mini receiver are sealed against the elements. It opens up a whole new world of adventure and fun.
For quick, convenient, hassle-free charging, a 4-amp DC fast charger is included to maximize runtime and minimize down time. The included NiMH charger uses a 12-Volt DC power outlet for universal high-output charging.

• Traxxas 4-amp DC Peak Detecting Fast Charge
• Traxxas Power Cell 3000 mAh, 8.4v, NiMH Battery with iD™
• Traxxas TQ 2.4GHz Radio System
• Traxxas #6519 TQ 3-channel micro receiver
• Waterproof electronics permit driving in water, mud and snow
• Waterproof receiver box

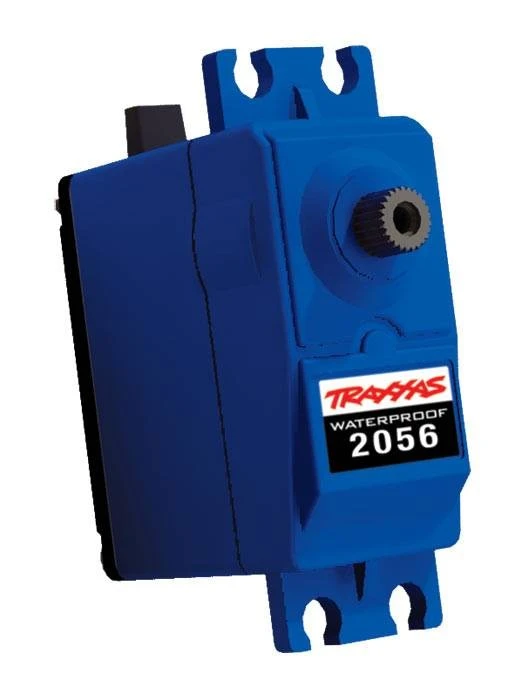

• High-torque Waterproof Traxxas #2056 steering servo
• Powerful Titan® 12T 550 modified motor with internal cooling fan.
• Rustler reaches speeds in excess of 35mph using the included optional 28-tooth pinion gear*
• High-performance waterproof XL-5™ Electronic Speed Control.
• Innovative watersealed design
• Three Drive Profiles
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set® one-button setup
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors
• Large axle carriers with 5x11mm Oilite Bushings

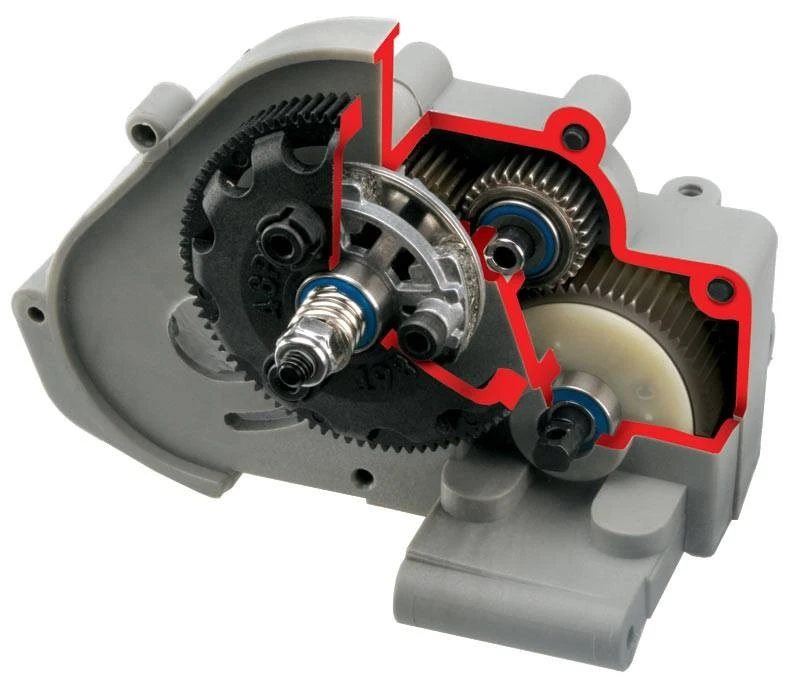

• Efficient Magnum 272™ three-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Revo®-spec Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Telescoping U-joint driveshafts

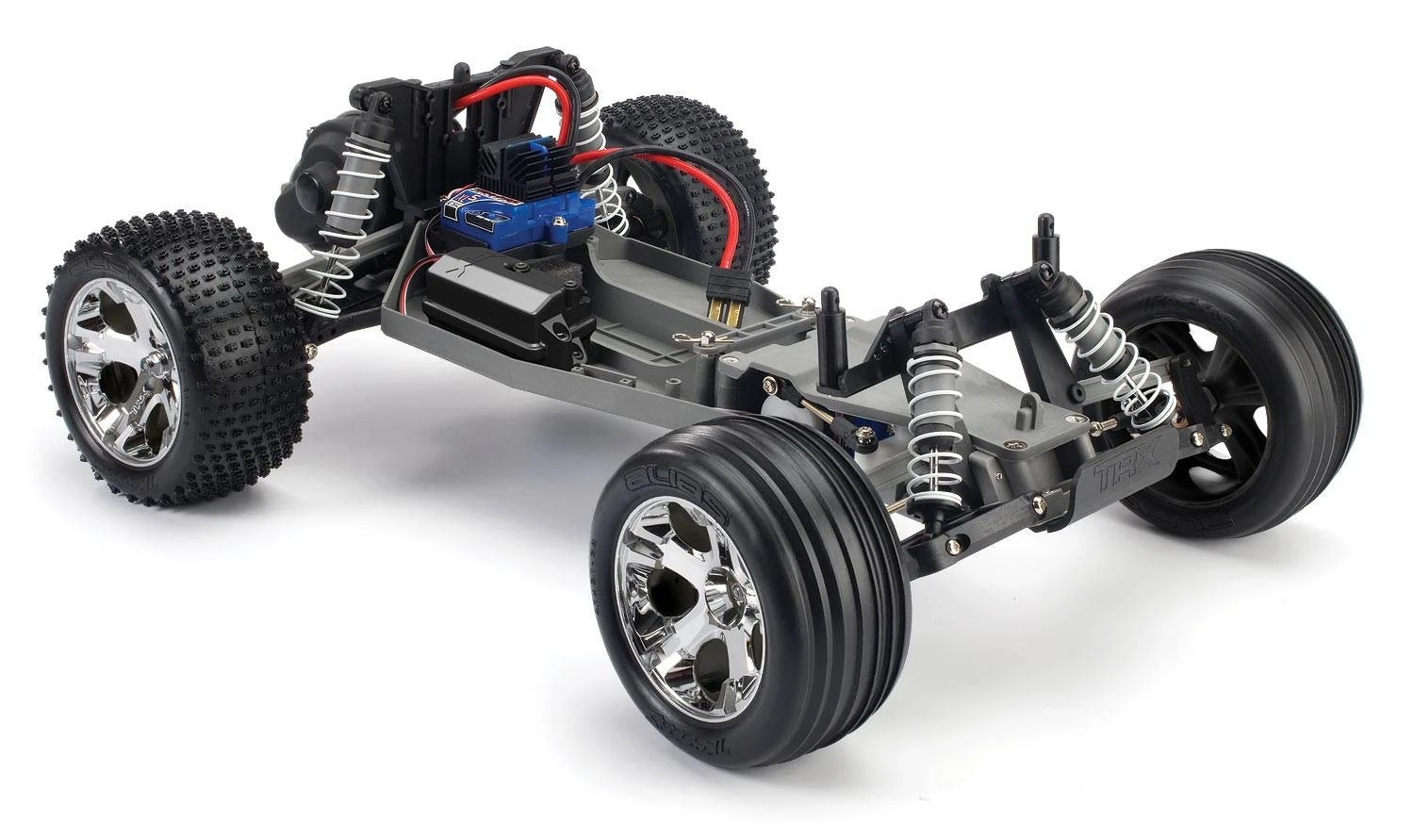

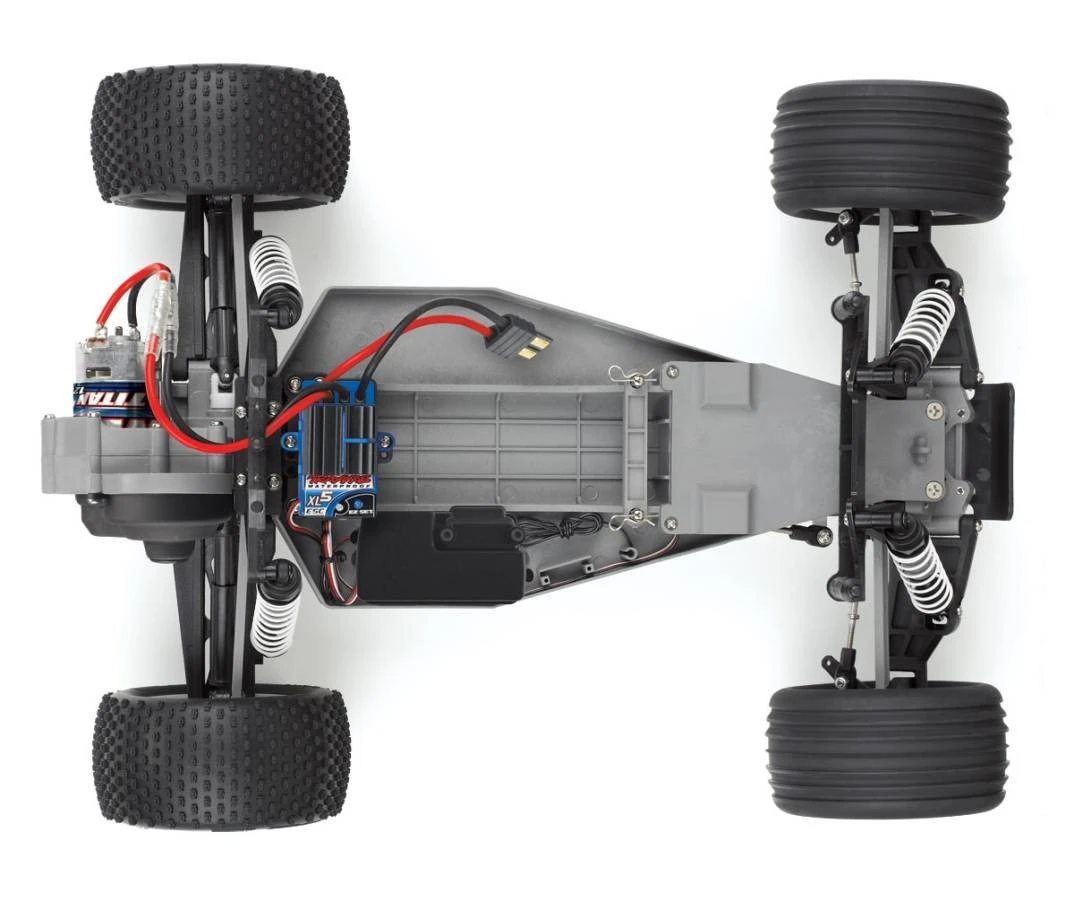

• Fiber-composite monocoque chassis.
• Gray chassis components offer a fresh look
• Speed control and waterproof receiver box are securely fastened to chassis
• Easy access battery compartment

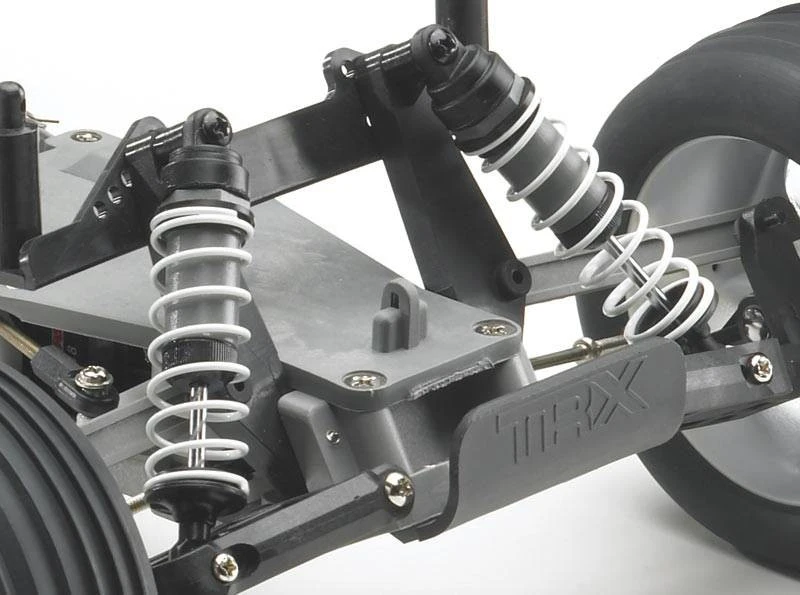

• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a new responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Alias™ step-pin rear tires and Alias ribbed front tires offer superior off-road traction
• Rustler’s tires include performance foam inserts and they come
• pre-glued on mirror-chrome 2.8″ All-Star™ wheels
• ProGraphix® multi-colored painted body is available in red,blue, black, and white
• Wing is securely attached to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability

* With 7-cell battery and included optional 28-tooth pinion gear.

Length: 17.5″ (445mm)

Front Track: 12.25″ (311mm)

Rear Track: 12.25″ (311mm)

Weight: 59.6oz (1.69 kg)

Height (overall): 7″ (178mm)

Wheelbase: 11.375″ (289mm)

Front Shock Length: Long

Rear Shock Length: XXLong

Front Tires (pre-glued): Alias™ Ribbed 2.8″

Rear Tires (pre-glued): Alias™ Step-Pin 2.8″

Front Wheels: 2.8″ Mirror-Chome (All-Stars™)

Rear Wheels: 2.8″ Mirror-Chome (All-Stars™)

Electronic Speed Control: XL-5™ Electronic Speed Control

Motor (electric): Titan® 12T 550 (12-turn 550)

Steering Servo: #2056 High Torque Waterproof

Transmitter: TQ 2.4GHz Radio

Receiver: #6519 TQ 3-Channel Micro

Gear Ratio (internal): 2.72 (final drive: 10.17)

Differential Type: Planetary

Gear Pitch: 48-Pitch

Transmission: Magnum 272™

Steering: Bellcrank

Chassis Type: Modified Tub

Chassis Material: Composite Nylon

Top-Speed: 35+mph**

Skill Level: 1

*Battery Tray Dimensions: 139mm x 47.5mm x 28mm

*Battery expansion kit available (#3725X).

**With 7-cell battery and included optional 28-tooth pinion gear.

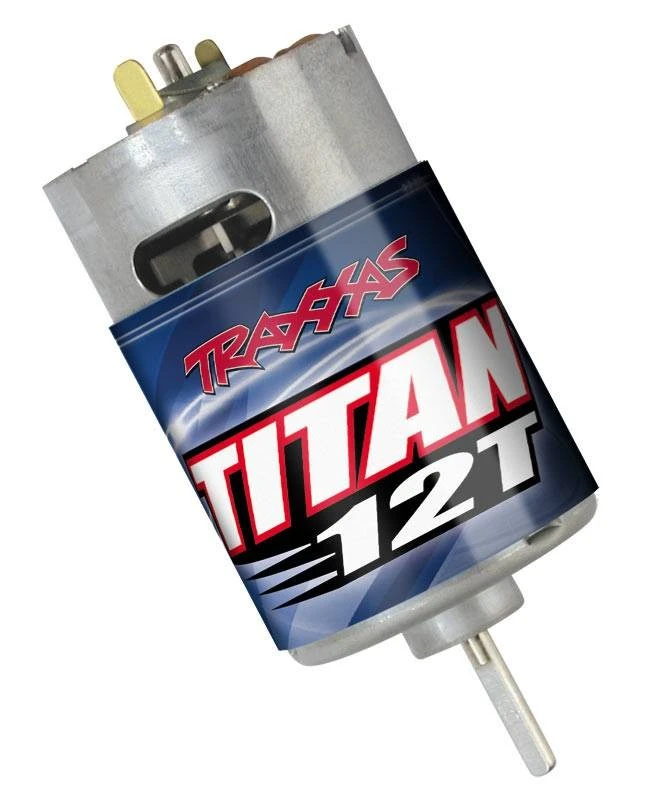

Titan® 12-Turn 550 Modified Motor:
The Rustler includes a powerful Titan 12T 550 modified motor with internal cooling fan – an industry first for this class of truck! The Titan’s oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.

XL-5 Waterproof Electronic Speed Control:
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

Traxxas 4-amp DC Peak Detecting Fast Charger:
Rustler includes a 4-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.

Precision 2.4GHz Control:
Switch on the power and drive! That’s all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ’s advanced programming provides long-range control with smooth, glitch-free performance. The TQ’s ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

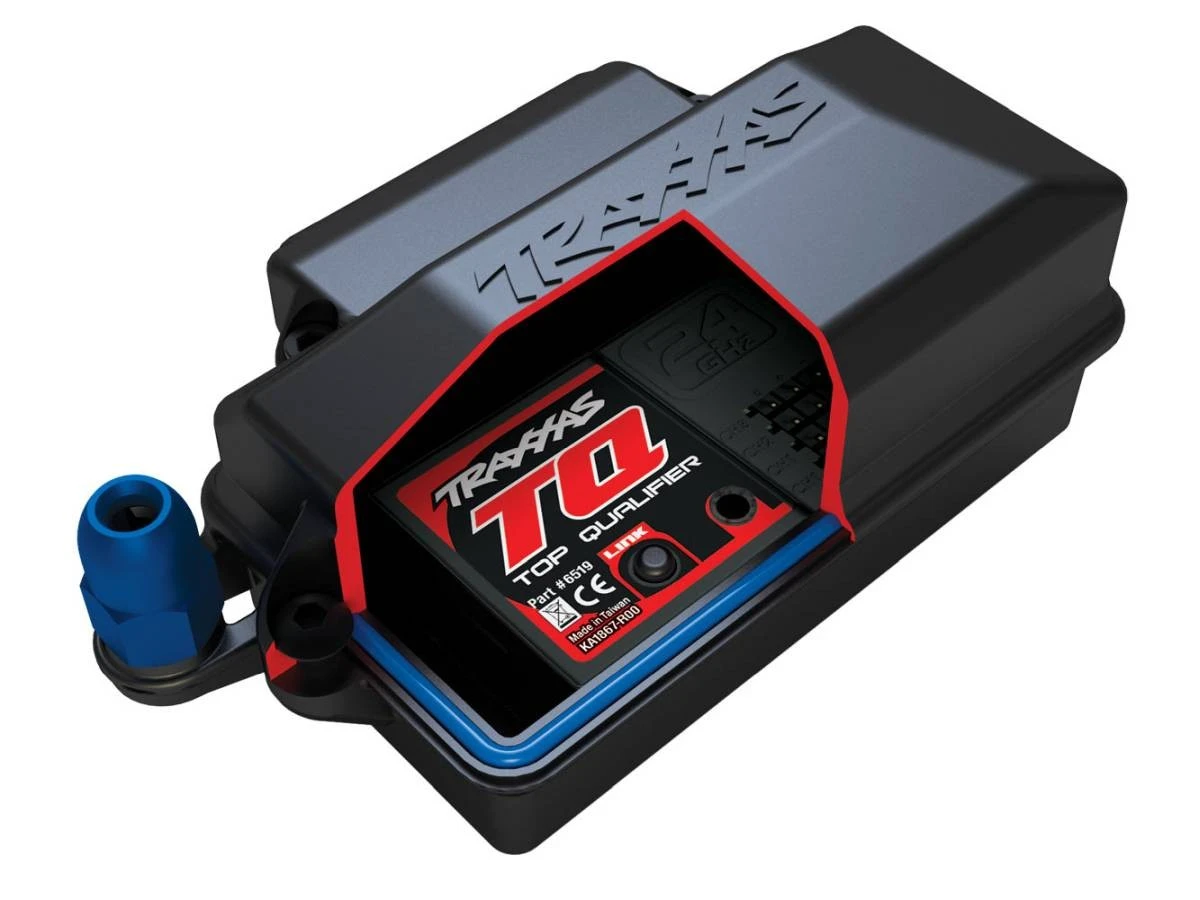

Waterproof Receiver Box:
Rustler’s innovative waterproof receiver box allows easy access to the receiver for maintenance. The unique patented design holds a 3-channel micro receiver that saves weight and provides reliable, long-range R/C performance.

Alias™ Tires and All-Star™ Wheels:
The Rustler rides on impressive 2.8″ All-Star™ mirror-chrome wheels. Alias™ step-pin rear tires and ribbed front tires keep the Rustler firmly planted on extreme off-road terrain.
The All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

Included Optional Pinion Gear:
The Rustler reaches its blistering 35+mph top speed on-road using the optional 28-tooth pinion gear (included) and a 7-cell 8.4V battery pack (sold separately). Out of the box, the installed 16-tooth pinion gear is just right for all-around, on or off-road action.

Brushless Ready Planetary Gear Differential:
The Traxxas planetary gear differential uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding power to the wheels.
