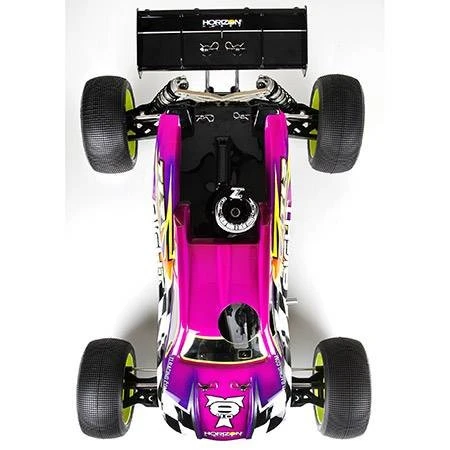

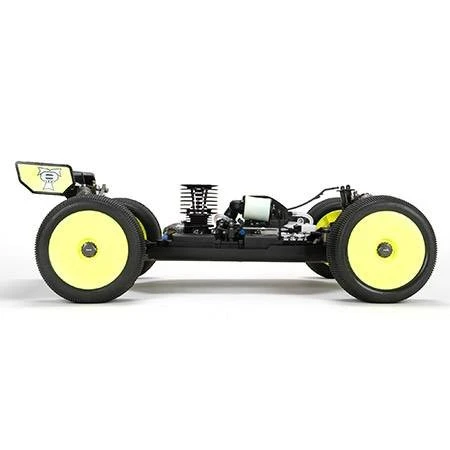

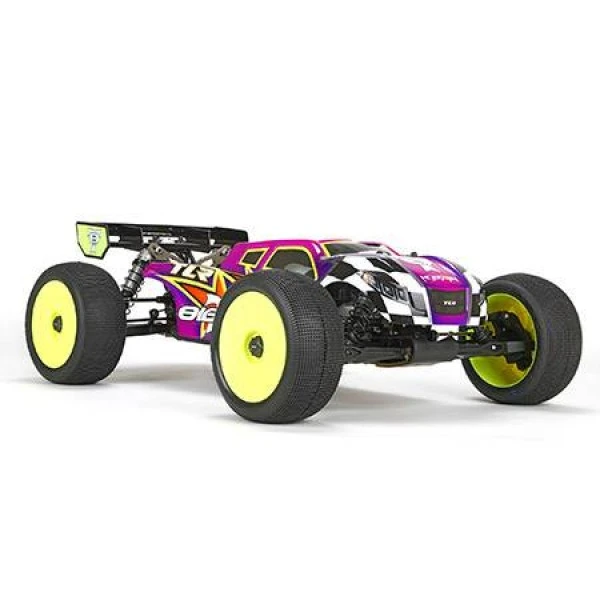

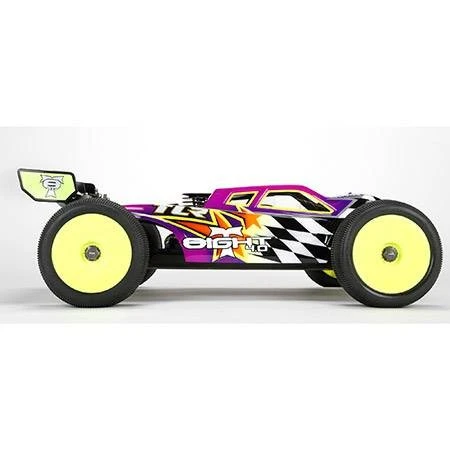

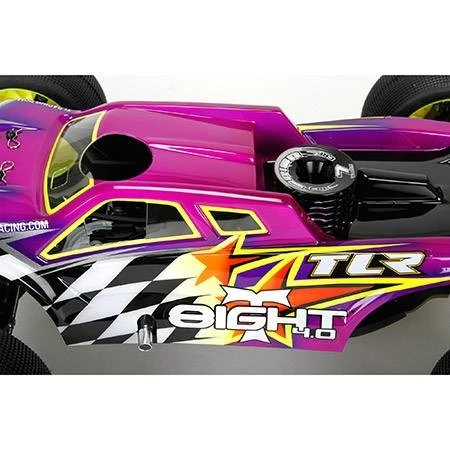

Losi 8IGHT-T 4.0 Race Kit 4WD Nitro Truggy

The suspension and drivetrain refinements engineered into the 8IGHT-T 4.0 truggy are inspired by a single purpose – giving racers of all experience levels a nitro truggy that is easy to drive fast, whatever the track conditions. Other updates, like the large-footprint engine mount and molded drivetrain boots, improve durability. It all adds up to a faster, tougher truggy that can take on the best the competition has to offer, right out of the box.

• Durable 4mm hard-anodized 7075 T-6 aluminum chassis
• Improved suspension geometry
• 11mm narrower track for better handling on tight sections
• Reduced front driveshaft angle
• Ball bearing throttle and brake actuators
• Large-bearing spindles and hubs
• Revised chassis side guards
• Larger engine mount that reduces chassis flex
• 15°caster blocks with adjustable spindle height
• Aluminum shock caps with threaded bleeder holes
• Molded driveshaft and dog bone boots
• Aluminum shock towers with updated camber link and shock location holes

Approximate Assembly Time: 3-5 Hours

Ball Bearings: Full Precision Ball Bearings

Body: Polycarbonate

Brakes: Disc

Chassis: 4mm Plate 7075-T6 Aluminum

Completion Level: Kit

Differential: Fluid Filled

Drivetrain: 4WD

Engine Size: Not Included .21 – .28 Nitro Engine

Final Drive Ratio: 16.67:1

Fuel Tank Capacity: 150cc ( 5.1 Oz)

Gear Pitch: 1.0 Module

Height: 7.30 in (185.5mm)

Internal Gear Ratio: 3.92 :1

Length: 18.75 in (476mm)

Pinion: 12T

Shock Type: 16mm Bore with Bladder

Size/Scale: 1/8

Spur Gear: 51T

Suspension: 4-Wheel Independent

Vehicle Type: 1/8th Nitro Truggy

Weight: Varies with equipment

Wheelbase: 14.93-15.09 in (379 – 383mm)

Width: 15.90 in (405mm)

Revised Suspension Geometry:
New suspension geometry makes it easier for drivers of all experience levels to turn faster lap times with fewer mistakes, particularly during brutal, hour-long mains.

Optimized Drivetrain Layout:
The engine has been repositioned to reduce front driveshaft angle so more power makes it to the front wheels.

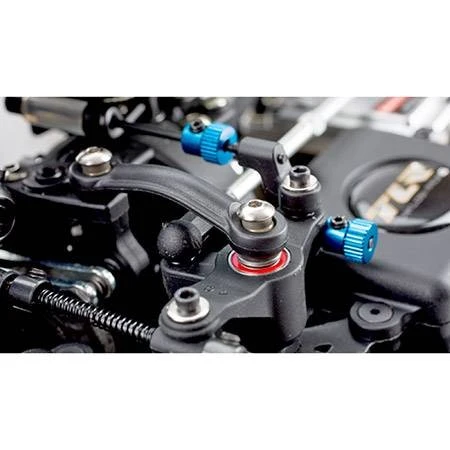

Ball Bearing Throttle and Brake Actuator:
This revised actuator makes throttle and brake response feel incredibly smooth and precise. It also features a new brace that prevents flexing during heavy braking.

Large Bearing Spindles and Hubs:
Front spindles and rear hubs have been revised to accept a larger 8 x 16 x 5 outer bearing for increased durability.

11mm Narrower Track Width:
Shorter suspension arms narrow the track width by 5.5mm on each side. This benefits handling on tight sections of the track by making the vehicle more dynamic and allowing it to transition from one direction to the other more quickly.

Large-Footprint Engine Mount:
In addition to its new position, the engine mount has been designed with a larger footprint that substantially reduces chassis flex and fatigue underneath the engine when racing on high-grip tracks.

Adjustable Caster Blocks:
The adjustable, 15-degree caster blocks make it possible to tune dog bone plunge by changing the height of the spindle.

New Bleeder Shock Caps and Seals:
The new bleeder shock caps and internal seals allow for easier rebuilds while using an emulsion shock setup. New bushings that press into the shock cap further improve durability.

Driveshaft and Dog Bone Boots:
Molded rubber boots on the universals and center drivetrain dog bones increase U- joint life by holding lubrication in and keeping dirt out.

Revised Chassis Side Guards:
The chassis side guards have been updated for a better fit.

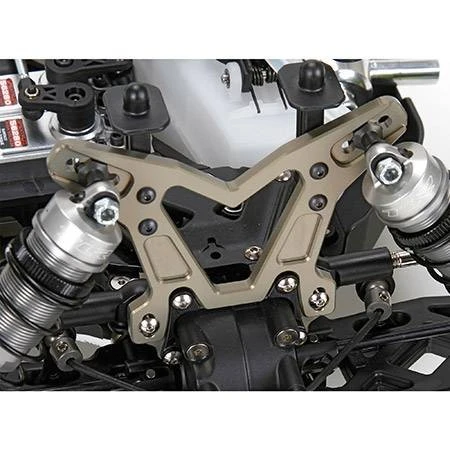

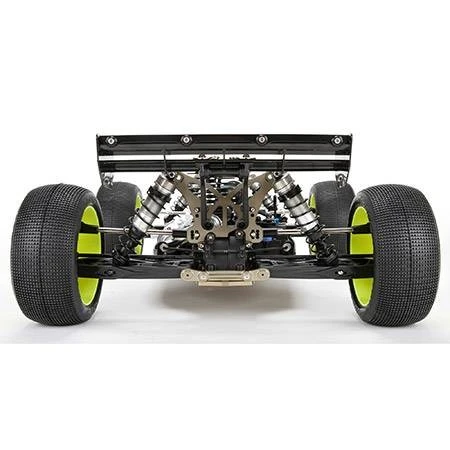

Redesigned Shock Towers:
The machined aluminum shock towers have new camber link and shock location holes that give racers more tuning options for changing track conditions.
