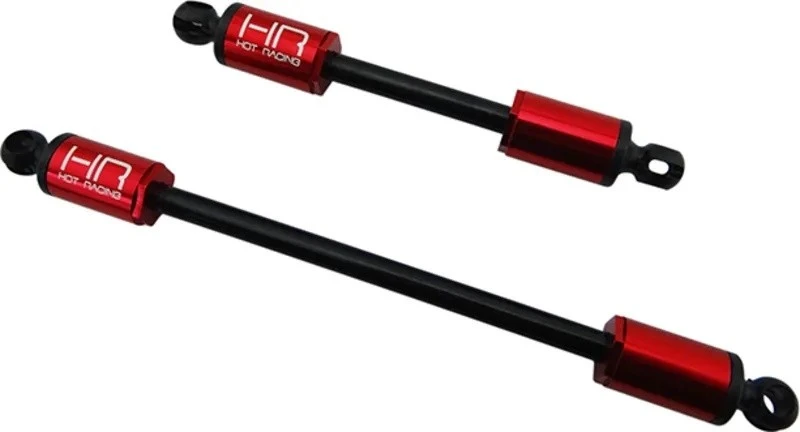

Hot-Racing Heavy Duty Steel Telescoping Driveshafts, Front And Rear (SCX10 II Kit)

Hot Racing heavy duty steel front and rear telescoping driveshafts for the Axial SCX10 II Kit vehicles (not RTR)

FEATURES:

• Heavy duty CNC machined hardened carbon steel construction
• 6061 aluminum screw-on sleeves to capture steel telescoping pins
• Replaces factory plastic front and rear drive shafts

INCLUDES:

• (1) front steel drive shaft
• (1) rear steel drive shaft

REQUIREMENTS:

• SCX10 II Kit vehicle (not RTR) with 2-speed capable transmission
• Axial AXA0286 M4x2.5x13mm screw shafts are required
• Axial AX31148 W88 V2 Joint 10X15mm
• Axial AX31028 2x11mm pin
• Axial AX31114 (1) Part of W88 V2 driveshaft
• Recommended to maintain telescoping assembly with grease

SPECS:

• Short shaft compressed length: 65.5mm joint-joint
• Short shaft extended length: 84.5mm joint-joint
• Short shaft travel: ~19mm
• Long shaft compressed length: 111mm joint-joint
• Long shaft extended length: 130mm joint-joint
• Long shaft travel: ~19mm
• Outside diameter: 11.5mm
• Shaft diameter: 5mm

Notes:
Will NOT work with vehicles equipped with the RTR transmission
