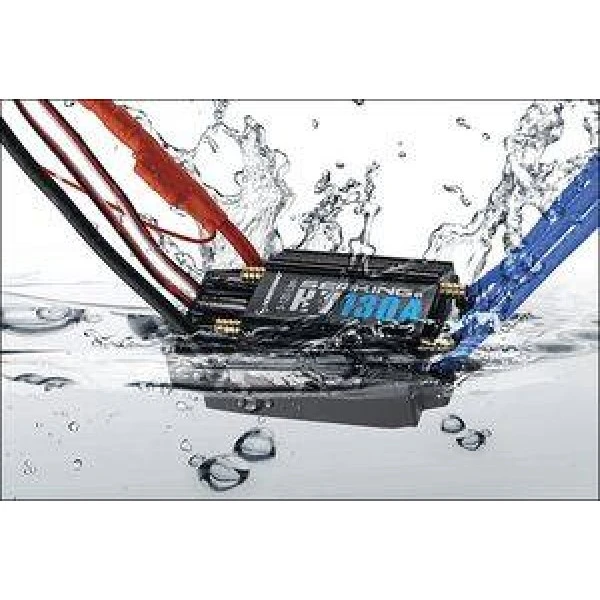

This is the Hobbyqing part number 30301200, the Seaking 130A V3 HV Brushless ESC
features
- Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions;
- High quality components have very strong over-current withstanding capabilities;
- Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
- The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable;
- The external Programming Port can connect to the LED Program card for easily setting the parameters of the ESC
- Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable
- The anti-spark circuit attached on the input wires eliminates the eletrospark created when connecting the ESC to battery;
- Dual water-cooling tubes make the heat distribution on the heat-sink more proportional.
Specs
Cont./Peak Current: 130A/720A
Boat Applicable: Boat length Input: 5-12S Lipo
BEC Type / BEC Output: NO Built-in BEC
External Programming Port: Available
Water Cooling Pipe: (Inside / Outside): Ф2.7 / 5.0mm
Input wire: Red-10AWG-150mm*1
Black-10AWG-150mm*1
Output wire: Blue-12AWG-100mm*3
Size / Weight: 88X58X23mm (Include the Water Cooling Pipe) / 182g
