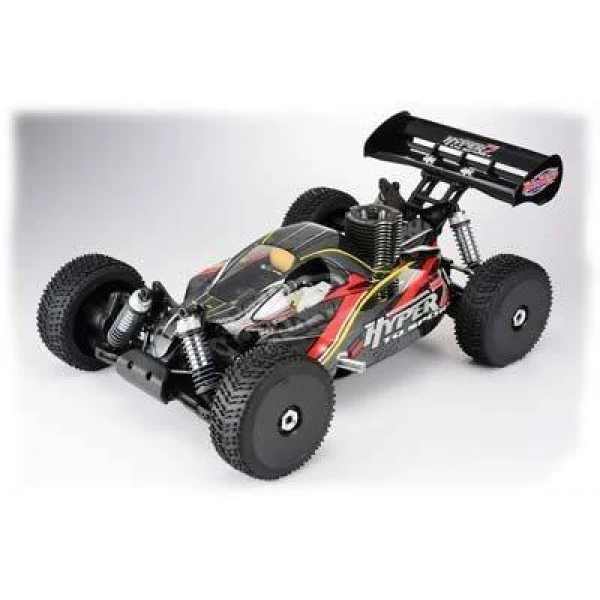

HoBao Racing RTR 1/8 Hyper 7 TQ Nitro Buggy

This is the HoBao Racing 1/8 Hyper 7 TQ Nitro powered ready-to-race buggy.

• Chassis: Aluminum 0.14″ (3.5mm), gun metal gray in color, separate plastic side guards
• Drive: Four wheel shaft
• Engine: Hobao Mac Star 28 with slide valve carb, Hobao T4 turbo platinum glow plug, and large plastic pull-start handle
• Exhaust: Aluminum tuned pipe with polished natural finish
• Radio: HoBao HT-2.4EF 3-channel 2.4GHz FHSS with dual rate steering and throttle, charge jack on transmitter for optional NiCd batteries, high output digital steering and throttle servos
• Servos: HoBao HB 5514 waterproof, metal gear, ball bearing equipped digital servos, 194oz-in (14kg-cm) torque
• Suspension: Front and rear lower composite suspension arms, front and rear stabilizer bars
• Shocks: Aluminum body 14mm oil-filled
• Front Shock Tower: 0.16″ (4mm) thick aluminum
• Rear Shock Tower: 0.12″ (3mm) thick aluminum
• Fuel Tank: 4.2oz (125cc)
• Clutch: Three shoe composite, 13 tooth steel clutch bell
• Spur Gear: 46 tooth steel
• Tires: High grip racing with foam inserts
• Wheels: Revo style, black in color, 17mm hex
• Body: Trimmed and printed with gray, red, white and yellow color scheme
• Brake: Dual disc
• Caster: Adjustable, caster/toe-in refers to the angle of the suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle

Vehicle;

Length: 19.5″ (495mm)

Width: 12″ (305mm)

Height: 7.5″ (190mm)

Wheelbase: 12.7″ (322mm)

Weight: 7.71lbs (3500g)

Body;

Length: 13.75″ (349mm)

Width: 8.6″ (218mm)

Height: 3.8″ (96mm)

Carburetor Needle Settings;

Factory Default After Break-In

Top End (high speed): 2-1/2 turns out /turns out

Bottom End (low speed) 1/2 turn out flush w/ball collar

Mid Range: Flush-do not touch Flush-do not touch

Idle Screw 1mm (1/16″ ) 1mm (1/16″ )
