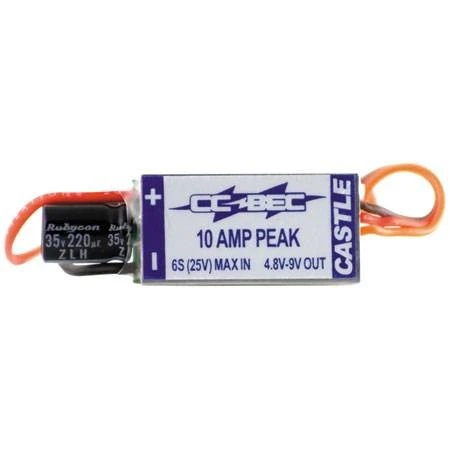

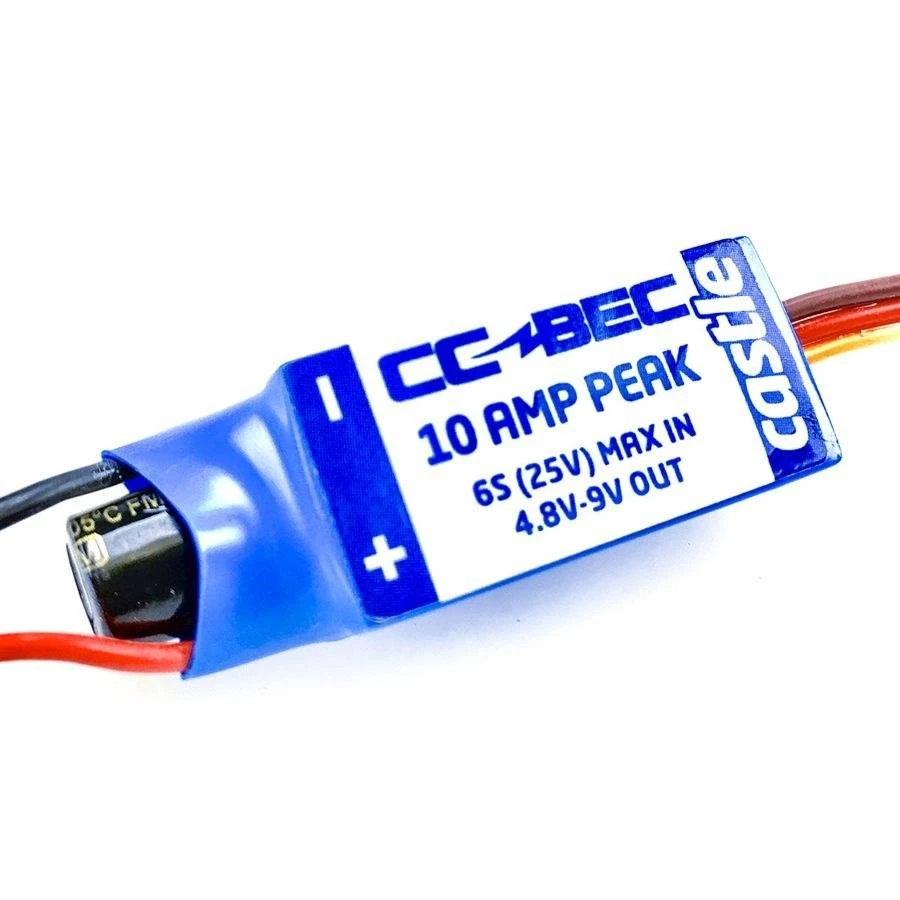

Castle Creations CC BEC 10A 25v (6s) Max Input Switching BEC

CC BEC (Battery Eliminator Circuit) is a small device that eliminates the need for a receiver battery. It draws voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which use high power servos, where the ESC does not have an internal BEC, or the existing BEC is inadequate.

The CC BEC is designed to operate at up to 6S LiPo with a 10A* peak servo load. Generally used for cars utilizing high powered digital servos. It is also useful in smaller airplanes using 4 standard non-digital servos or 6 micro servos. Perfect for 450 size or smaller helis. If you need more amperage or voltage capability, our CC BEC Pro is the way to go!

Part Number: 010-0004-00

Common applications: Crawlers, Racing, Sport Planes, Night Flyers

Waterproof: No

Peak current: 10A

Continuous current*: 2S-3S: 7A / 3S-6S: 5A

Max volts: 6S (25.2V)

Adjustable output voltage*: 4.8 to 9V

Default setting: 5.1V

Programmability: Yes, output voltage can be changed via Castle Link (sold separately)

Length: 1.7″ (43mm)

Width: 0.57″ (15mm)

Height: 0.48″ (12mm)

Shipped weight*: 0.53 oz. (15.2g)

1. Ratings are determined with a 5mph airflow at 25° C (77° F).

2. Adjustable Output Voltage may be set with Castle Link (sold separately).

3. Weight with full length wires, power wires may be shortened to save weight depending on application.
