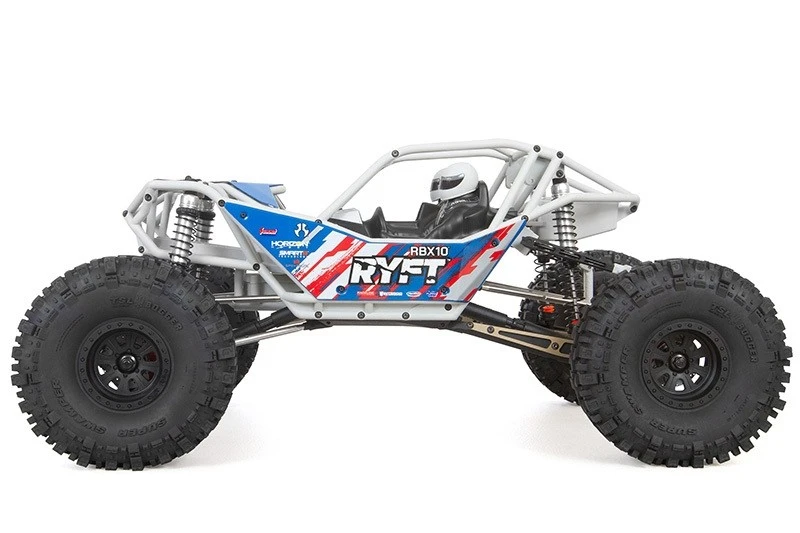

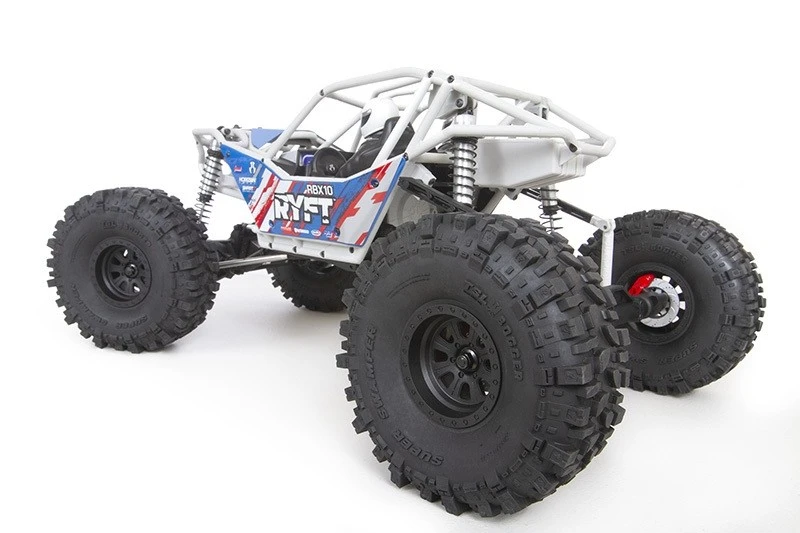

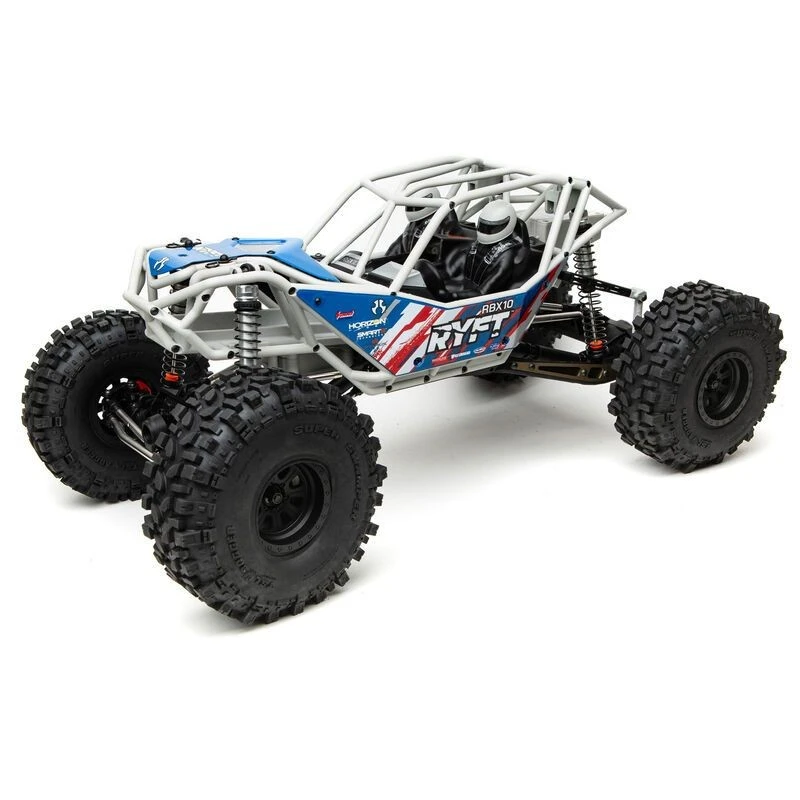

Axial RBX10 Ryft 1/10 4wd Rock Bouncer KIT, Gray

Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD, a kit that allows intermediate level RC drivers to experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

The RBX10™ Ryft™ 4WD’s robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at high speeds over difficult off-road terrain. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and realistic metal differential covers. Officially licensed Interco TSL Super Swamper Bogger tires on Raceline Monster wheels do their part to tame wild tracks, aided by a 4-link suspension and adjustable, long travel front and rear oil shocks. These features, plus a full-time 4WD transmission, make the RBX10™ Ryft™ an exciting vehicle to take on tough challenges at full throttle.

The Ryft™ kit comes with a clear body for finishing in your favorite colors, plus decals and realistic interior details. Many option parts are also included: spool/locker, rear aluminum link plates, rear sway bar, and parts for a 2-speed or single-speed transmission setup (servo not included). Build and finish the kit as you wish and complete it with your choice of radio system, motor, ESC and battery. Then, enjoy rock bouncing off-road driving over trails, dirt, gravel, rocks and more, with an RC vehicle that’s engineered to take it — the Axial® RBX10™ Ryft™ 4WD.

• Strong tube chassis design
• Full-time 4WD transmission
• Solid front and rear axles with realistic metal differential covers
• Hardened steel universal axle set

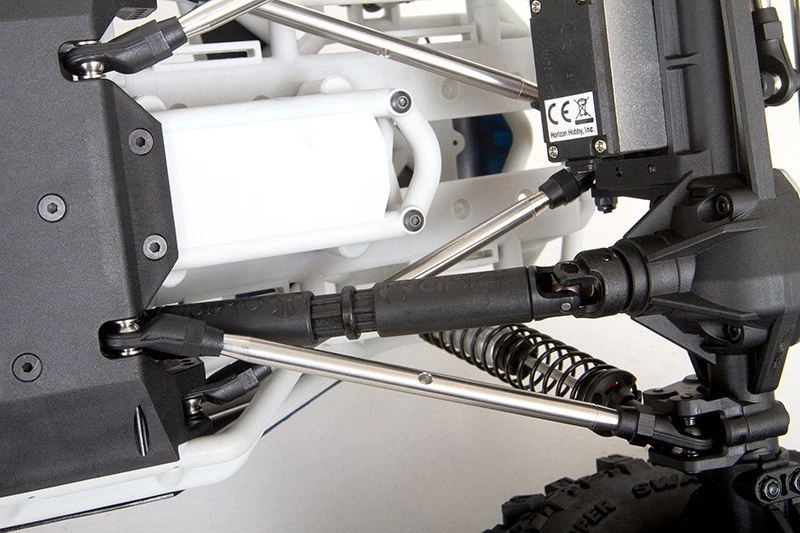

• Tough, large diameter WB11 Wildboar™ driveshafts
• 4-Link suspension system
• Long travel front and rear oil-filled shocks
• Officially licensed Raceline Monster wheels
• Simulated disc brakes for extra realism
• Interco Super Swamper TSL (Three Stage Lug) Bogger tires
• Kit also includes option parts

Ball Bearings: Full set

Battery: Sold Separately

Brakes: Integral with ESC (ESC not included)

Bushing Material: Metal

Charger: Sold Separately

Chassis: Injection molded plastic

Completion Level: Kit

Differential: Bevel gear

Drivetrain: 4WD

Drive Type: Forward/Brake/Reverse

Front Track: 12.75″ (323.8mm)

Power Type: Electric

Gear Pitch: MOD 1

Ground Clearance: 3.25″ (82.5mm)

Motor Type: Brushless – Sensored

Pinion: 17T

Product Height: 8.75″ (222 mm)

Product Length: 21.5″ (546 mm)

Product Weight: 7.26lbs (3.29kg)

Product Width: 12.75″ (324 mm)

Radio: Sold Separately

Receiver: Sold Separately

Scale: 1/10

Servos: Sold Separately

Shock Type: Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm

Speed Control: Sold Separately

Spur Gear: 53T

Suspension: Solid axle 4-link

Tire Tread: Interco TSL Bogger

Vehicle Type: Rock Racer

Water-Resistant: Yes

Wheelbase: 15.25″ (387 mm)

Wheel Type: Raceline Monster

Wheel Width: 1.6 in (40.64mm)

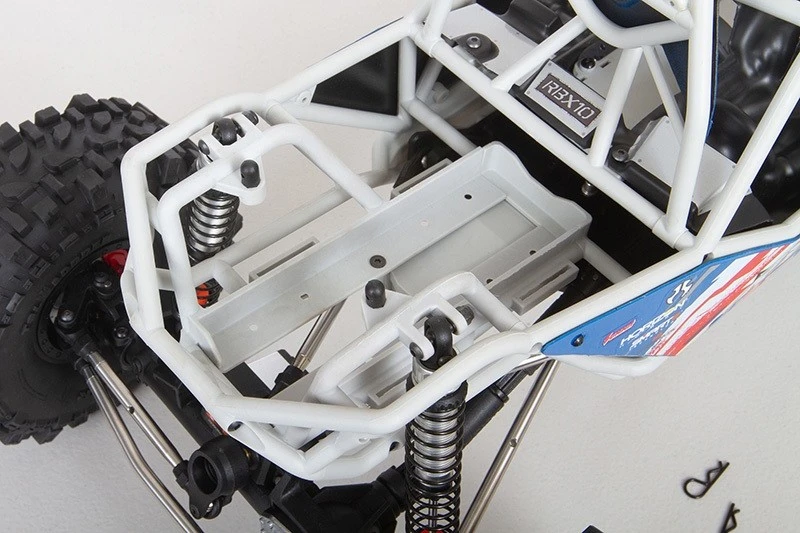

Custom Tube Chassis:
Axial® is known for custom tube chassis that are strong and well-designed. The Axial® RBX10™ Ryft™ chassis is all that and much more, with the resilience to withstand the hard knocks of rock bouncing.

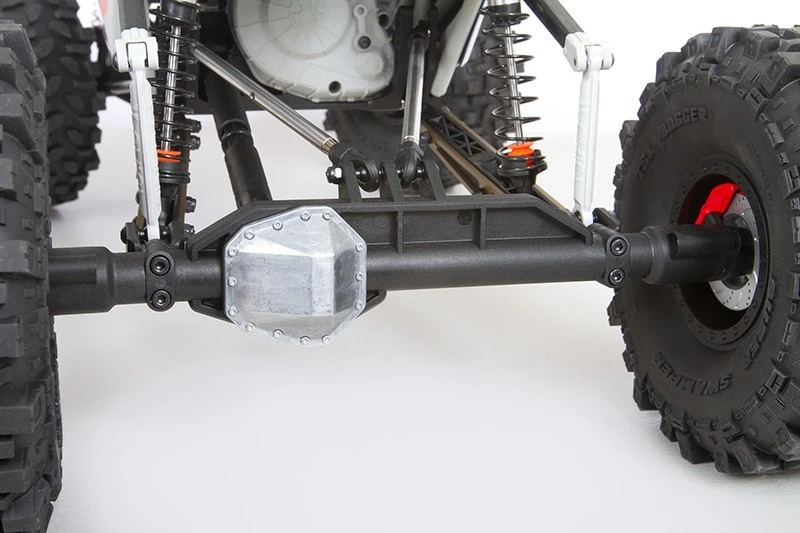

Front and Rear Solid Axles:
The RBX10™ Ryft™ 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles. The axles also feature realistic metal differential covers in a raw, unfinished appearance.

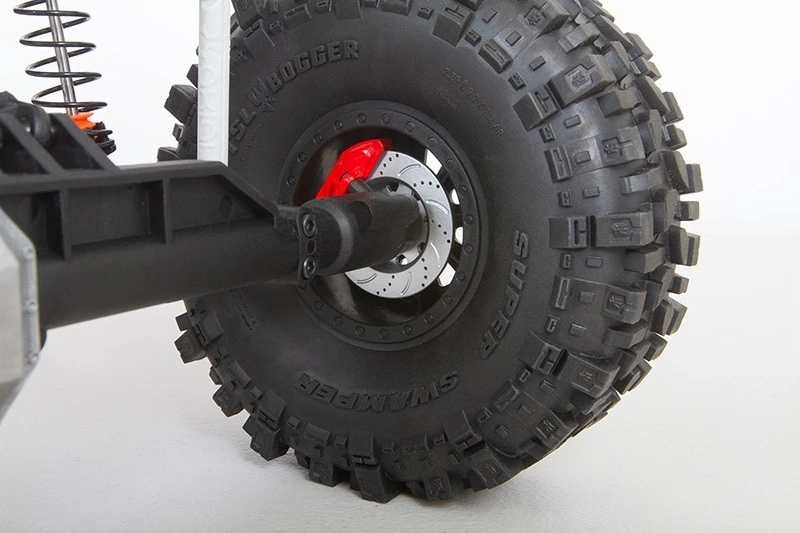

Interco Super Swamper TSL Booger Tires:
The Ryft™ 4WD’s licensed replica Bogger tires feature a directional tread pattern with the patented Interco TSL lug design. The custom siping follows a pattern used by many professional competitive rock bouncers who want an aggressive tire that performs as good as it looks.

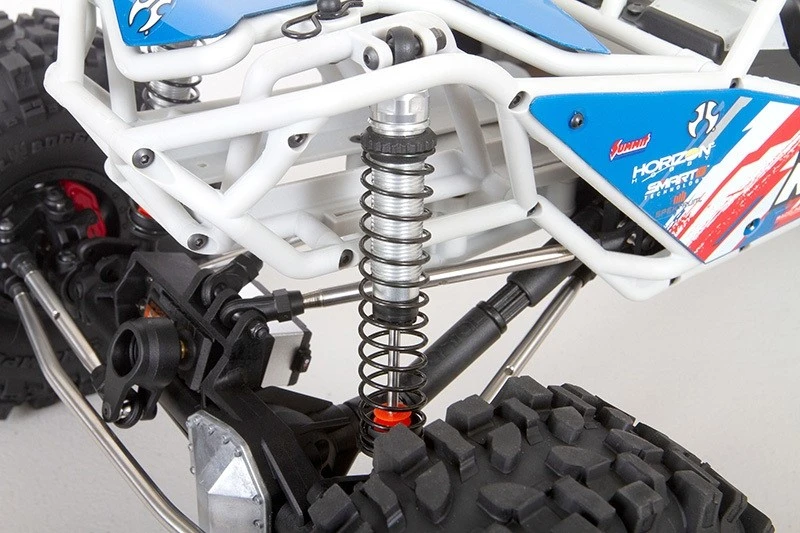

Aluminum Long Travel Shocks:
The oil-filled shocks feature threaded bodies and a single coilover spring, plus an aluminum shock cap and pre-load adjustment for tuning the suspension to achieve the best dampening rate. The 12mm bore size allows more fluid volume for better performance.

Raceline Monster Wheels:
In full-size, Raceline is the most popular wheel for extreme off-road duty — with a show-quality finish and proven ability to take abuse. Officially licensed Raceline Monster wheels give the 1/10 scale Ryft™ authentic looks and the strength to handle anything you can dish out.

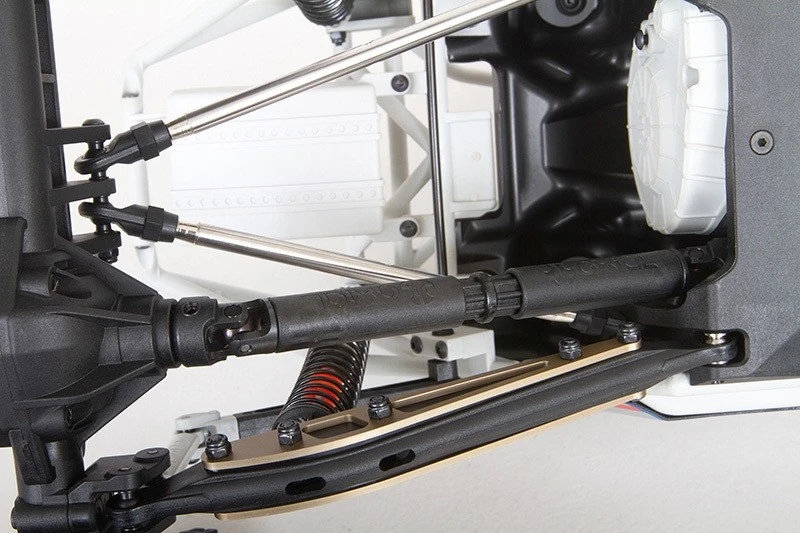

Option Parts Included:
The RBX10™ Ryft™ 4WD kit comes with parts needed to build it with a single or two-speed transmission (servo not included), as well as optional rear sway-bar, rear aluminum link plates, and spool/locker.
