| FEATURES |
Chassis: Hard anodized aluminum, 0.098″ (2.5mm) thick pocketed
chassis, optional weights (not included) allow weight bias tuning,
repositioned A plate provides maximum front end clearance

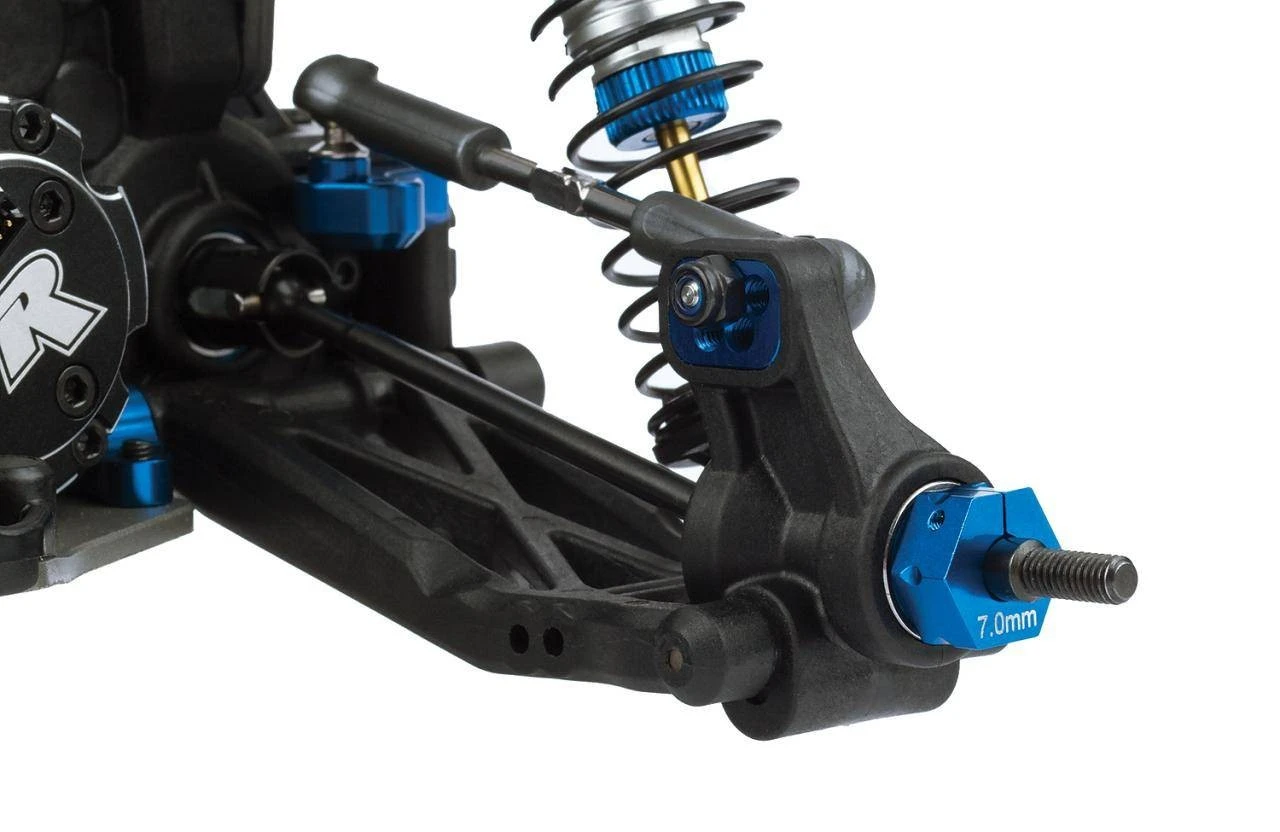

Drive: Two wheel drive with heavy duty rear axle, aluminum front
axle and rear hexes for less rotating mass

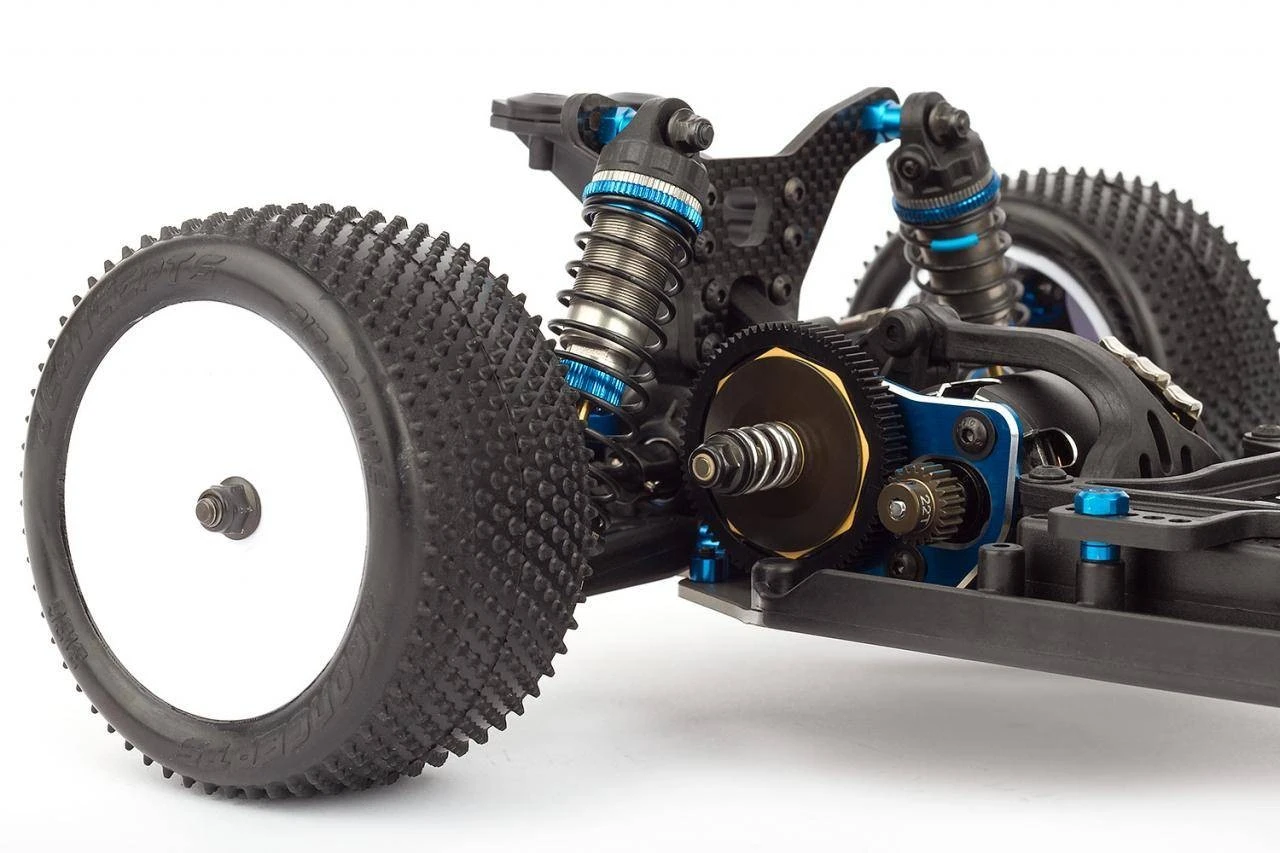

Transmission: Stealth laydown 3-gear type offers lower CG and
reduced polar moment
Differential: Gear type for greater speed and forward acceleration

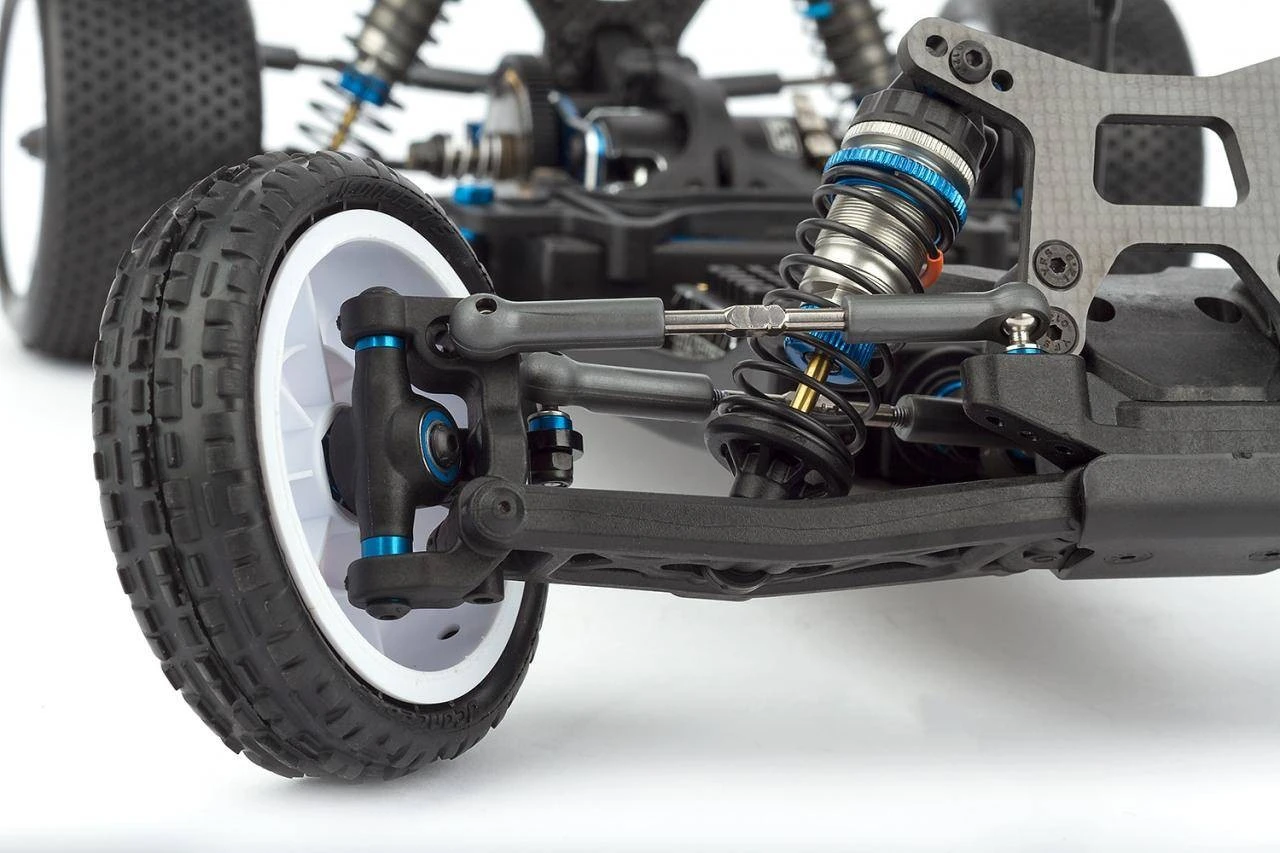

Suspension: Gull-wing front arms for lower CG and increased on-
power steering, updated ball cups and turnbuckles for precise
adjustment and durability
Motor Mount:
central positioning for optimum side-to-side balance

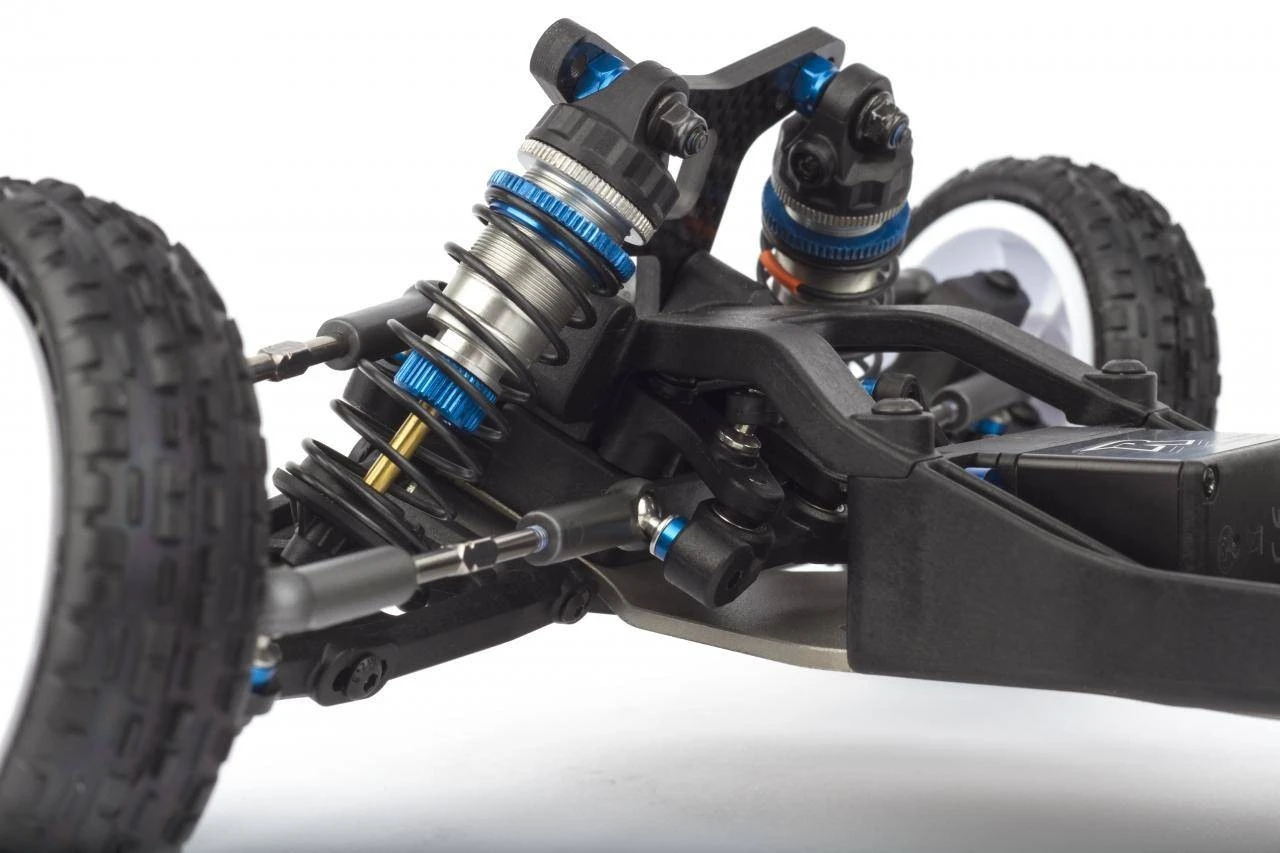

Shocks: V2 12mm Big Bore aluminum body with 3mm TiN coated shafts
and low friction X-rings for improved smoothness, Factory Team
aluminum shock bushings, rear shocks may be mounted on front or
rear of rear arms
Ball Bearings: Full set Factory Team upgraded

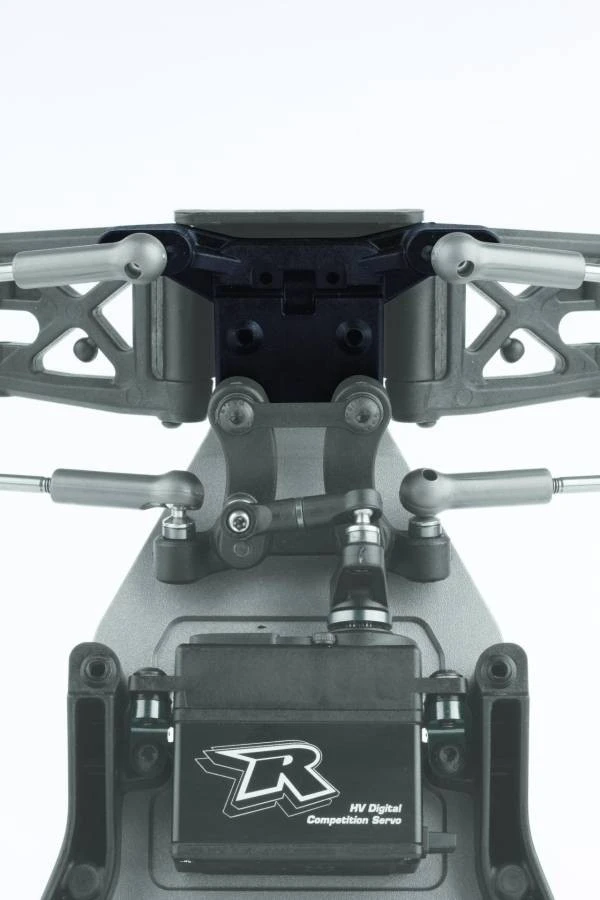

Steering: One-piece blocks with bolt-on Ackermann plate, Ackermann
refers to the effect of the inner front wheel rotating faster than
the outer front wheel during turns, reverse bell-crank steering
rack design offers more room for electronics

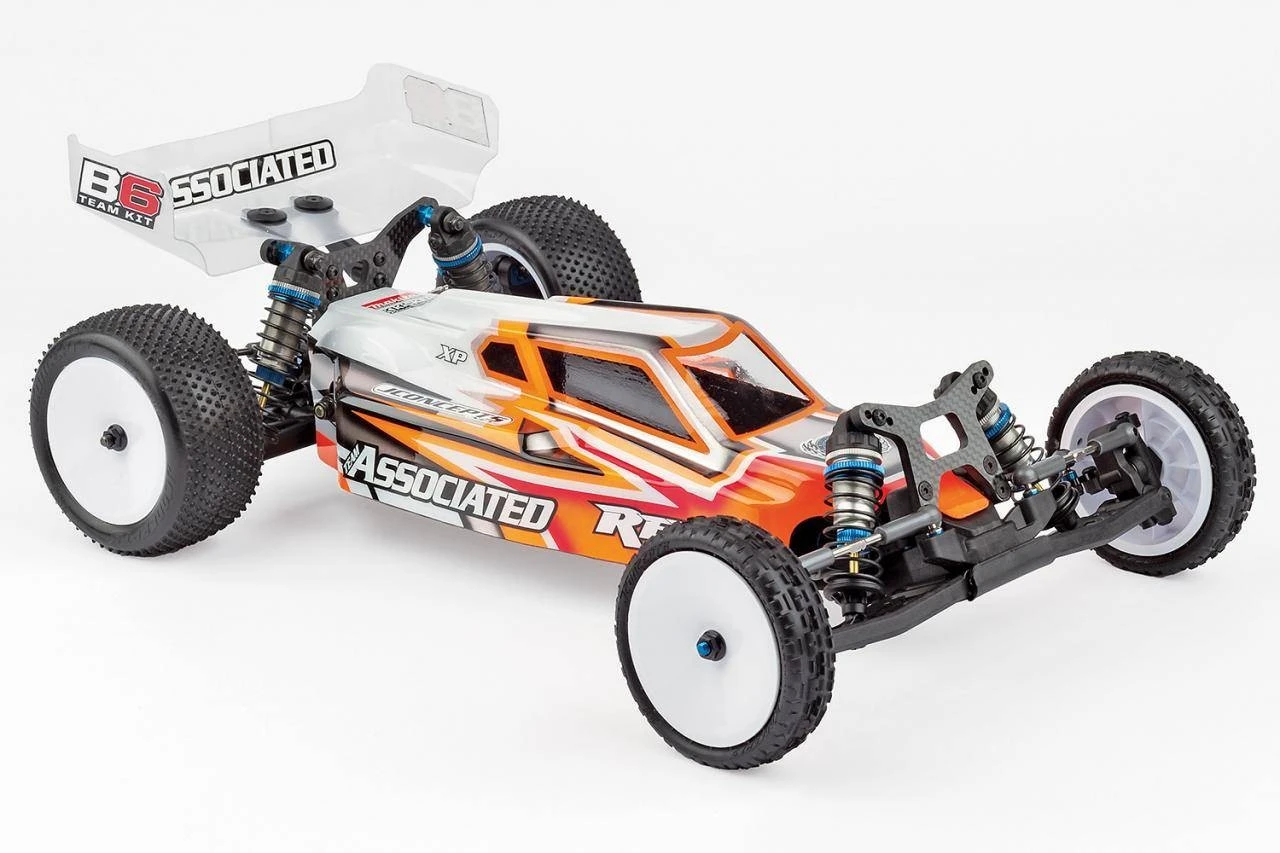

Body: Clear buggy, screw-mounted wing by JConcepts
Battery Hold-Down Strap: Adjustable to allow weight bias tuning
| INCLUDES |

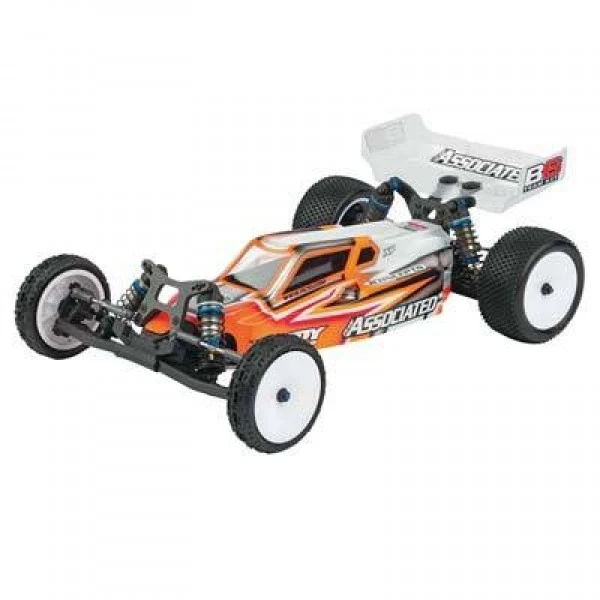

RC10B6 Team Buggy Kit with Body, Rear Wing, Shocks, Decals and
Instruction Manual
| REQUIREMENTS |
Radio: 2-channel with high-torque steering servo
Motor: 540 size
ESC:
Battery: 7.4V LiPo or 6.6V LiFe, saddle, shorty or square pack
Battery Charger:
Wheels: 1/10 scale buggy
Tires: 1/10 scale buggy
Pinion Gear: 48P
Paint, building and track equipment
| SPECIFICATIONS |
Vehicle;
Length:
Width:
Height:
Wheelbase: 11-11.1″ (280-282mm)
Body;
Length: 11.4″ (289mm)
Width: 5″ (127mm)
Height: 2.8″ (71mm)
